Fluorescent Lighting for Zone 2, Zone 22 Hazardous Area Lighting Applications

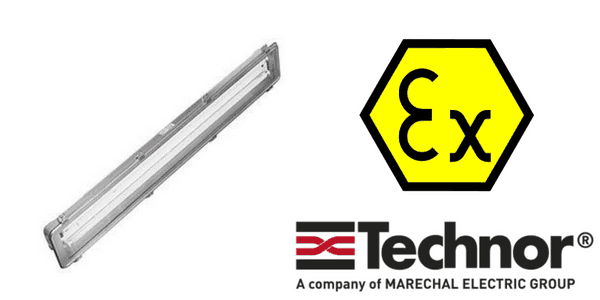

Technor’s RMS 550 is a fluorescent Ex nA lighting fixture suitable for hazardous area lighting and has a body and glass frame are made of stainless steel AISI304 and manufactured from a single sheet of steel with no invasive mounting holes, to minimise the risk of water ingress through the housing – suitable for on and offshore applications where there is an need for a high level of corrosion.
Technor RMS 550 fluorescent lighting is classified to international hazardous area classifications with ATEX and TRCU certification, with ingress protection IP65 and an operational ambient temperature range of -30°C to +55°C.
* In case of maximum ambient temperature reach +55°C, temperature class changes into T4/T105°C (ordering code to be required).
* In case of maximum ambient temperature reach +55°C, temperature class changes into T4/T105°C (ordering code to be required).
** 120’ version available upon request (ordering code to be required).
II 3 GD
Hazardous Area Approvals
Certified 01ATEX3002X (standard) TR CU (marking upon request, ordering code to be required)
| Category | ATEX Lighting (Zone 1 & Zone 2) |
|---|
| Material | AISI304 stainless steel, 0,8mm thickness and transparent part in tempered glass (AISI 316 L version available upon request) |
| IP rating | IP65 |
| Ambient temperature range | -30°C to +55°C |
| Approvals | INERIS 01ATEX3002X (standard) TR CU (marking upon request, ordering code to be required) |
| Gaskets | Special cross-section tightness gasket, silicon rubber made (closed cell), located in housing channel between body and window frame. |
| Entries | Body complete of two 21mm Ø through holes (on one side) for cable entry, one complete of metallic plug with M20 locknut and gasket and the other one with temporary plastic plug to prevent dust ingress. |
| Hardware and screws | AISI304 Stainless steel external hardware and screws |
| Lamps | RMS series lighting fixtures are suitable for two pins fluorescent lamps G13 socket Philips TL-D or equivalent (lamps excluded) |
| Ballast | High frequency electronic ballast conforming with EN 60079 – 15 and IEC 60079 – 15 |
| Rated Operation Voltage (UE) | 220-240 V |
| Frequency | 50 – 60 Hz |
| Power Factor | >0.95 |
| Accessories available upon request | Pole mounting kit / Ceiling mounting kit / Suspension mounting kit / Wall mounting kit 3°- 4° through holes opposite side |
| Operating Principles | Available RMS.. lighting fixtures for emergency service of one tube: – 90 minutes ; guarantees 60’ duration with constant flux (emergency lumen factor 18%) and 30’ with decreasing flux |
| Technor Part Number | Code | Power (W) | Temperature Class | Ambient Temperature | Dimensions (mm) | Weight (kg) | ||
| A | B | C | ||||||
| RMS-550-03 | A020111180200 | 1X18 | Gas T5 Dust T100ºC | (-20º;+50º)* | 737 | 239 | 123 | 5.10 |
| RMS-550-04 | A020112180200 | 2X18 | Gas T5 Dust T100ºC | (-20º;+50º)* | 737 | 239 | 123 | 5.20 |
| RMS-550-01 | A020111360200 | 1X36 | Gas T5 Dust T100ºC | (-20º;+50º)* | 1347 | 239 | 123 | 8.40 |
| RMS-550-02 | A020112360200 | 2X36 | Gas T5 Dust T100ºC | (-20º;+50º)* | 1347 | 239 | 123 | 8.60 |
| Technor Part Number | Code | Power (W) | Temperature Class | Ambient Temperature | Emergency Duration | Dimensions (mm) | Weight (kg) | ||
| A | B | C | |||||||
| RMS-550-03 LE-P-90 | A020211181210 | 1X18 | Gas T5 Dust T100ºC | (-20º;+50º)* | 90′ | 737 | 239 | 123 | 5.80 |
| RMS-550-04 LE-P-90 | A020212181210 | 2X18 | Gas T5 Dust T100ºC | (-20º;+50º)* | 90′ | 737 | 239 | 123 | 5.90 |
| RMS-550-01 LE-P-90 | A020211361210 | 1X36 | Gas T5 Dust T100ºC | (-20º;+50º)* | 90’** | 1347 | 239 | 123 | 9.10 |
| RMS-550-02 LE-P-90 | A020212361210 | 2X36 | Gas T5 Dust T100ºC | (-20º;+50º)* | 90’** | 1347 | 239 | 123 | 9.30 |
