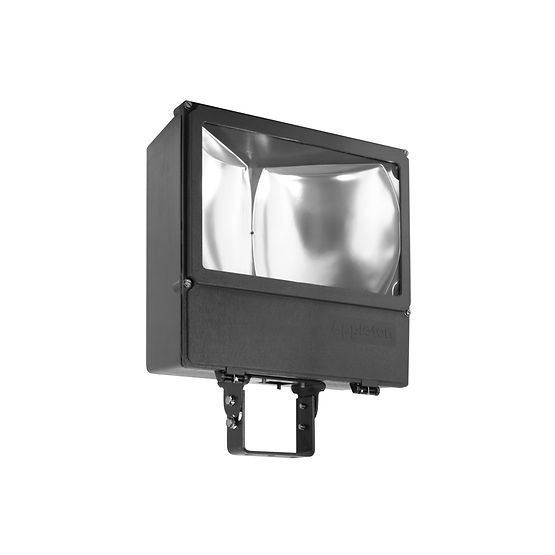

Appleton ATX PNM1L25AGXJ| HID Floodlight
Appleton ATX PNM1L25AGXJ| HID Floodlight
Product Category: Hazardous Area Lighting | Explosion Proof Floodlights
The Areamaster ATEX PN Series of Explosion Proof HID Floodlights manufactured by Appleton ATX are powerful, efficient floodlights for hazardous areas. These floodlights are listed for simultaneous exposure to gas, combustible dusts and flammable gases or vapors.
Typical Explosion Proof HID Floodlight applications include industrial complexes, ship loading areas, and other hazardous areas where dust, water, dirt and rough usage are a problem. A highly efficient, integrally ballasted explosion proof floodlight with a compact, lightweight, yet rugged die cast aluminium construction which is simple to install and maintain.
The Appleton ATX PN Series HID Floodlight has an integral ballast, one piece lens cover, yoke mounting and reflectors which are double segment, compound parabolic with finish for maximum efficiency.
View our complete range of ATEX Lighting products for Zone 1 & Zone 2 (Zone 21 & 22) hazardous area lighting applications.
Thorne & Derrick | Hazardous Area Lighting Specialists | Explosive Atmosphere Specialists
| Category | ATEX Control Stations |
|---|
| Lamp Type & Wattage | Diffuser | Dust Surface Temperatrure for Ta = +40°C (+104°F) | Time Before Opening in Minutes | |
| 250 Watts High Pressure Sodium | Glass Diffuser | +127 °C (+261 °F) | 15 |
| Body Size | Lamp Type & Wattage | T Rating for Ta = +40 °C (+104 °F) | T Rating for Ta = +50 °C (+122 °F) | T Rating for Ta = +55 °C (+131 °F) |
| Medium | 250 Watts – High Pressure Sodium | T3 | T3 | T3 — Cable T ° = +82 °C (+180 °F) |
| ATX Order Code | T Rating for Ta = +40 °C (+104 °F) | T Rating for Ta = +50 °C (+122 °F) | T Rating for Ta = +55 °C (+131 °F) |
| PNM1L25AGXJ | 160 °C (320 °F) | – | T3 — Cable T ° = +82 °C (+180 °F) |
