Product Overview

increased safety Junction Boxes

Appleton ATX JBES2237200F8

Zone 1 & Zone 2 (Gas) | Zone 21 & Zone 22 (Dust) Hazardous Areas

The JBES Series are Increased Safety junction boxes, manufactured by Appleton ATX, which are designed to house and protect electrical connections in hazardous areas. They are produced from 316L grade stainless steel, are pre-drilled and come equipped with terminals (including an Earth crossing terminal).

These Increased Safety junction boxes feature smooth, continuously welded seams and hinges supplied on all boxes. They are ideal for use in onshore and offshore wet or corrosive atmospheres such as petroleum refineries, chemical refineries and other industrial process facilities with hazardous area locations according to ATEX or IECEx.

The JBES range is also suitable for use in hazardous area Zone 21 or Zone 22 areas, where flammable dusts are present, either continuously or intermittently such as food processing, dairy, brewing and silos.

• Product: Increased Safety Junction Box
• Manufacturer: Appleton ATX
• Range: JBES
• Increased Safety Junction Box Type: JBe46
• Dimensions Length x Width x Depth: 220 x 370 x 200 mm (8.66 x 14.57 x 7.87 inches)
• Terminals 2.5 mm² (0.0039 in²): 54 | 27 Pairs
• Continuity Shield: 27
• Increased Safety Junction Box Weight: 9.0 kg | 19.84 lbs
• Increased Safety Junction Box Volume: 16.3 dm³ | 994.69 in³
• Ambient Temperature: -50 °C to +70 °C (-58 °F to +158 °F)
• Surface Temperature: T80 °C to T95 °C (T176 °F to T203 °F)
• Hazardous Area Certified: ATEX & IECEx
• ATX JBES2237200F7 is ideal for use in Zone 1 and Zone 21 as well as Zone 2 and Zone 22 hazardous area locations
• Hazardous Area Junction Plugs & Sockets | Hazardous Area Control Stations | Hazardous Area Lighting

dimensions

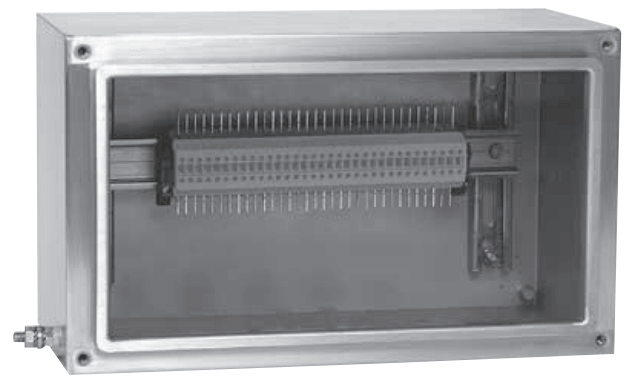

Factory Drilled and Equipped with Horizontal Terminal Block

Horizontal beige Exe terminal block. Continuity shield. White laminated plastic tag with black lettering. M8 External earth crossing terminal.

Cable glands and plugs to be ordered separately – Contact our team for details.

JBe46 Type Increased Safety Junction Boxes are also available as Factory Drilled and Equipped with Vertical Terminal Block – Order Code Appleton ATX JBES372220F3
