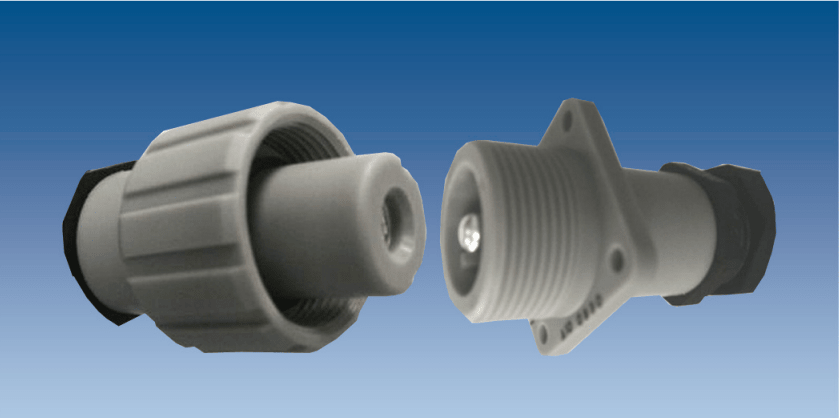

Amphenol Amphe-SP3 are single pole, cylindrical, plastic power connectors with threaded coupling and high current RADSOK® contact technology.
Amphenol Amphe-SP3 are single pole, cylindrical, plastic power connectors with threaded coupling and high current RADSOK® contact technology.
The connectors are coloured black and grey and differentiated by two keyway rotations to indicate polarity and prevent potential mating mistakes.
These connectors are designed for environmental high power applications and have been successfully used in Outdoor Power Supply, Control Systems, Communications in various industrial markets like Hybrid and Electric Vehicle charging, Heavy Equipment, Outdoor LEDs and Factory Automation.
Industrial Connectors – Features
Connector shells, inserts, coupling nuts and cable glands are manufactured from thermo plastic. The contacts are copper alloy, 5.7mm RADSOK® (plug only), silver plated (gold plated also available on request). Electrical Data
Operating voltage: 600V AC Max
Dielectric withstanding voltage: 3000 VA Min.
Current rating: 120A Max
Insulation resistance: 5000 megaohms Min at 25C
Contact resistance: 5 millionohms Max
Vibration shock: 980 m/s²
Operating temperature: -40C to +125C
Mating cycles: 500 times Min
Salt fog spray: NACI 5%, 1000H
Contact termination: Crimp
Contact size: 4 AWG
| Category | ATEX Plugs, Sockets & Connectors |
|---|
| Amphenol Order Code | Key Way Position | Operating Current | Description |
| C10-679103-001 | 120 | 120A | Plug with socket contact |
| C10-679104-001 | Wall mount receptacle with pin contact | ||
| C10-670306-001 | 90 | Receptacle with busbar termination and pin contact | |
| C10-679103-002 | Plug with socket contact | ||
| C10-679104-002 | Wall mount receptacle with pin contact | ||
| C10-670306-002 | 120 | Receptacle with busbar termination and pin contact |
