Industrial Plugs & Sockets

Circular, metal, multi-pin, threaded coupling signal or power connector for benign or harsh environments. SAE-AS50151 qualified.

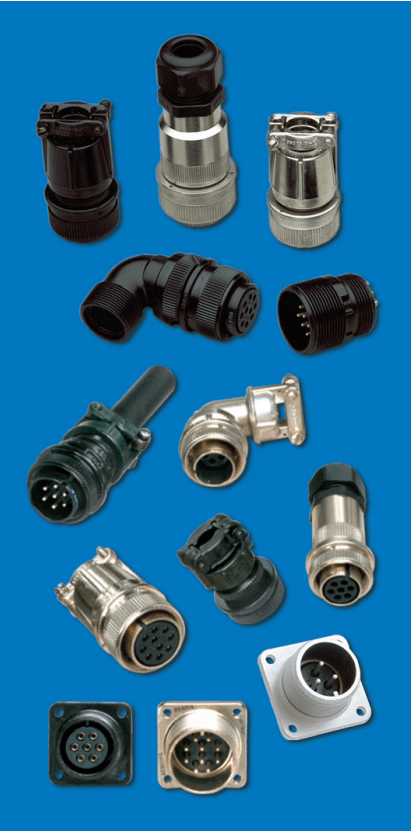

Amphenol 5015 series are rugged, versatile and environmentally resistant connectors. 5015 connectors are medium to heavy weight, threaded, cylindrical connectors with 5 shell styles, 19 shell sizes and 5 service classes.

The 5015 range offers up to 305 different contact arrangements from 1 to 104 circuits. Connectors are available with solder or crimp contacts, environmentally resistant options, threaded coupling (fine thread), coaxial and thermocouple contacts, and RoHS compliant versions.

Amphenol AC threaded series derived from the 5015 family can be enhanced with high amperage RADSOK contacts. The RADSOK design – socket cylinder within female contact
has twisted hyperbolic grid, provides higher amperage capabilities with low insertion force and low temperature rise.

The RADSOK contact has a twisted hyperbolic, stamped grid configuration within the socket. This design ensures a large, coaxial, face-to-face surface area engagement. As male pin is inserted, axial members in the female half deflect, imparting high current flow across the connection with minimal voltage loss.

Box mount receptacle 5015 type connectors can be supplied with PCB tails for mounting to a printed circuit board.

features & benefits

• Environmental sealing
• Optional filtering capabilities for receptacle connectors (Amphe-dB series – contact our team for more information)
• Combined power and signal in one connector
• The RADSOK advantage provides contacts that handle up to 150% higher amperages than standard contacts.(Amphe-Power series – contact our team for more information)
• Over 300 insert patterns allows for easy customisation
• Threaded coupling (fine thread)
• Single key/keyway polarisation
• Coaxial and thermocouple contact options
• RoHS plating and contact options available (AC Threaded series)
• Low Smoke and Fluid Resistant inserts available (AC Threaded series)
• SAE-AS50151, formerly MIL-DTL-5015 (F and R classes only)
• EN 45545-2 certification
