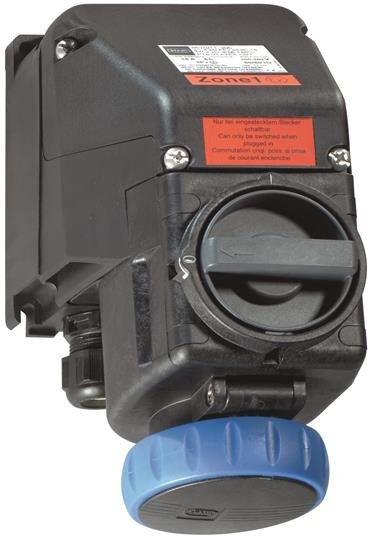

Interlocked Sockets 16A Amps | ABB 216MVS6XW | Hazardous Area Zone 1, 21, 2, 22

Product Overview

Plugs & Sockets | ATEX Certified | Zone 1 (21) & Zone 2 (22) Hazardous Areas

Explosion Proof

The ABB range of explosion proof plugs and sockets covers most explosion proof and protection applications.

With Tough & Safe and heavy duty mechanical interlocks, the explosion proof plugs for hazardous areas are suitable for use in most harsh environments with potentially explosive atmospheres in onshore or offshore locations in the oil, gas and petrochemicals industries.

These ATEX plugs & sockets, manufactured by ABB, are used for to connect equipment in all kind of hazardous areas where it needs to be possible to connect and disconnect. ABB plugs and sockets are chosen when safety, reliability and durability is requested.

ATEX Socket Specification

• Product: Mechanical Interlocked Socket
• Current: 16A Amp
• Terminals/Poles: 2P + Earth
• Voltage: 200-250 V
• Frequency: 50 & 60 Hz
• Socket Width: 168 mm
• Socket Height: 105 mm
• Socket Length: 232 mm
• Socket Weight: 1.120 kg
• Cable Diameter: 7 … 17 mm
• Socket Colour: Blue
• Connection Type: Screw Clamp
• Socket Housing Material: Glass-fibre reinforced polyester
• Degree of Protection: IP66
• Explosion protection – Hazardous Area Zone 1 & Zone 2 Gas: II 2 G Ex de IIC T6 Gb
• Explosion protection – Hazardous Area Zone 21 & Zone 22 Dust: II 2 D Ex tD A21 80ºC Db
• ABB Socket Type: 216MVS6XW
• ABB Order Code: 2CMA101687R1000

Zone 1 & Zone 2 (Gas) and Zone 21 & Zone 22 (Dusts) Plugs & Sockets

ABB 216MVS6XW socket receptacle should be used in conjunction with ABB 216P6XW
