Product Overview

hazardous Areas

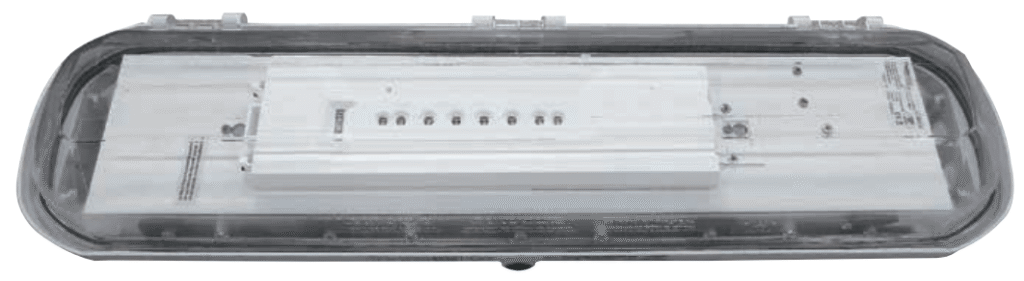

Appleton ATX FNESLEDSLU

Zone 2 (Gas) | Zone 21 & Zone 22 (Dust) Hazardous Areas

ATX FNES Series LED Bulkhead Lights manufactured by Appleton ATX provide hazardous area lighting and emergency access and exit routes during an evacuation. They are suitable for use in hazardous areas designated as Zone 2 – 21 and 22. Ideal for paper and pulp mills, oil refineries, silos or petrochemical plants.

The FNES Series can be equipped with a variety of labels to indicate exit routes. These LED bulkhead lighting units are entirely self-contained, and include a built in automatic self-test system.

• Product: LED Emergency Bulkhead Light
• Light Fitting Type: Emergency Light Fitting – Space Lighting
• Manufacturer: Appleton ATX
• Range: FNES
• Lamp Type: LED Array
• Lumen Output: 540 lumens
• Efficacy: 110 lm/w
• Voltage: 230 Vac, 50/60 Hz
• LED Lumen Depreciation (L70): 60,000+ hours
• Ambient Temperature: -20 °C/-40 °C to +55 °C (-4 °F/-40 °F to +131 °F)
• Emergency Duration: 1 Hour
• Color Temperature: 5650K
• Color Rendering Index (CRI): 70+
• Cable Entries: 2 x Unarmoured M20 clearance entries
• LED Bulkhead Emergency Light Weight: 7.2 kg | 15.87 lbs
• LED Bulkhead Emergency Light Volume: 32.3 dm³ | 1971.1 in³
• Replaceable Components: Driver and Battery
• ATX FNESLEDSLU is ideal for use in Zone 2 as well as Zone 21 and Zone 22 hazardous area locations
• Hazardous Area Certified: ATEX & IECEx
• Light Fittings ATEX Zone 1 | Light Fittings ATEX Zone 2

Selecting the Right Lumen Level

As LED light fittings are more efficient than the High Intensity Discharge (HID) equivalent, a watt-for-watt replacement would produce significantly higher than desired levels of lighting. Generally, an LED equivalent hazardous area light fittings produce the same light, but with 1/3 to 1/2 the energy consumption of HID lighting.
