The M1003 Stopswitch is a simple inductive shaft speed monitoring device. The self-contained unit, which signals when the shaft has stopped rotating. It can be used for process control, motion detection and…
The M1003 Stopswitch is a simple inductive shaft speed monitoring device. The self-contained unit, which signals when the shaft has stopped rotating. It can be used for process control, motion detection and stopped shaft indication. An inductive sensing device located in the nose of the M100 enclosure will detect a metal target. This target can be an existing bolt head or device attached to a shaft. The M1003 Stopswitch requires no calibration and provides an output when the shaft has stopped rotating.
| Brand | 4B |
|---|---|
| Part numbers | M1003V10AI |
| Application | Belt Conveyor, Bucket Elevator, Chain Conveyor, Screw Conveyor |
| | ||
| Specification | Value | |
| Supply Voltage: | 24 to 240 VAC/VDC | |
| Supply Fusing: | Supply to be fused at 500mA maximum | |
| Switching Capacity: | 50mA maximum | |
| Saturation Voltage: | 5.5 Volts maximum (output on) | |
| Leakage Current: | 1.0 mA maximum (output off) | |
| Ambient Temperature: | 5°F (-15°C) to +122°F (+50°C) | |
| Output State: | FET | |
| Sensing Range: | 6 mm (15/64”) maximum on ferrous metal at 77°F (25°C) | |
| Input Pulse Range: | 20 to 3,600 pulses per minute (PPM) maximum | |
| Start-Up Delay: | 4 seconds | |
| Trip Point: | zero speed | |
| Enclosure: | Nylon - ISO threaded 18 mm by 1.0 mm pitch | |
| Relative Humidity: | 90% RH | |
| LED Indicators: | Blue - Target Sensed, Green - Rotation Detected | |
| Connections: | 2 wire, 3m long cable. | |
| Protection: | IP66 |
Tell us your quantity and requirements — we reply within one business day.
Speed Switches & EncodersThe Whirligig® is a fully guarded target for easy mounting of motion sensors. It is a universal shaft sensor mount suitable for all industry standard cylindrical or DIN style inductive sensors including…

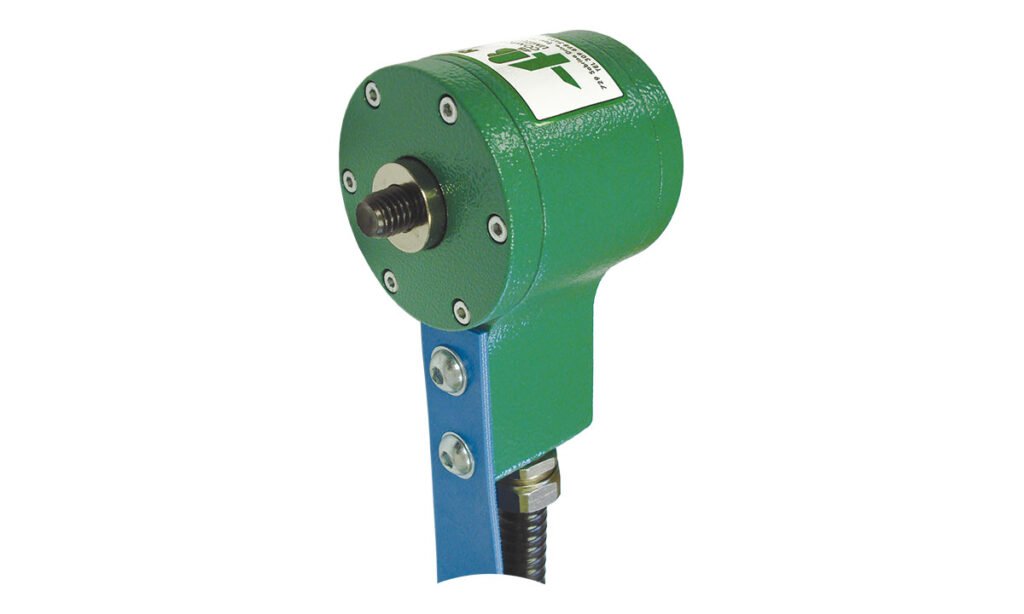

Speed Switches & EncodersThe 4B heavy duty aluminium Rotech rotary shaft encoder is used primarily for protecting equipment and personnel from dangerous underspeed/belt slip conditions in extreme environments. Other applications include accurate speed control, direction…
