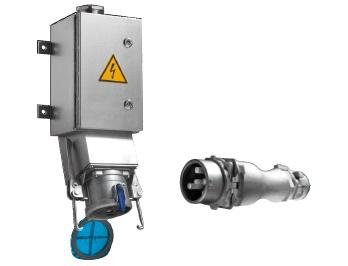

Marechal DS4 plugs and sockets have a rated current of 400A and a maximum voltage of 1000V. DS4 plugs and sockets have an ingress protection rating of IP54 (optional IP66/IP67) whether the plug is connected or the protection lid is closed.
Marechal DS plugs & sockets have an impact resistant metal or GRP casing. The DS4 also features a shock resistance rating of IK09 which means the decontactors are protected against 10 joules of impact or the equivalent to the impact of a 5 kg mass dropped from 200 mm above the impacted surface.
A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal’s DS range of plugs and sockets are suitable for rated currents from 30A up to 400A and maximum voltages from 690V up to 1000V.
| Category | ATEX Plugs, Sockets & Connectors |
|---|
| Rated Current (with wiring according to standard) | 400A |
| Maximum Voltage | 1000V |
| Ingress Protection | IP54 (optional IP66/IP67) |
| Shock Resistance | IK09 |
| Ambient Temperature | -40ºC to +60ºC |
| Flexible Wiring (Min – Max) | 95 mm² – 150 mm² |
| Stranded Wiring (Min – Max) | 95 mm² – 185 mm² |
| Pilot Contacts 5 A/400 V AC for Electrical Interlock | 2 |
| Keying Positions | 12 |
| Voltage 50Hz | Polarity | Marechal Socket Outlet (Female) DS4 400A | Marechal Inlet (Male) DS4 400A |
| 380-440V AC | 3P+E+ 2pil. | 3944013 | 3948013 |
| 660-690 V AC | 3P+E+ 2pil. | 3944193 | 3948193 |
| 1000V AC | 3P+E+ 2pil. | 3944223 | 3948223 |
