Marechal 2534015 | Decontactor Socket-Outlet
Product Code: 2534015
ATEX Plugs, Sockets & Connectors

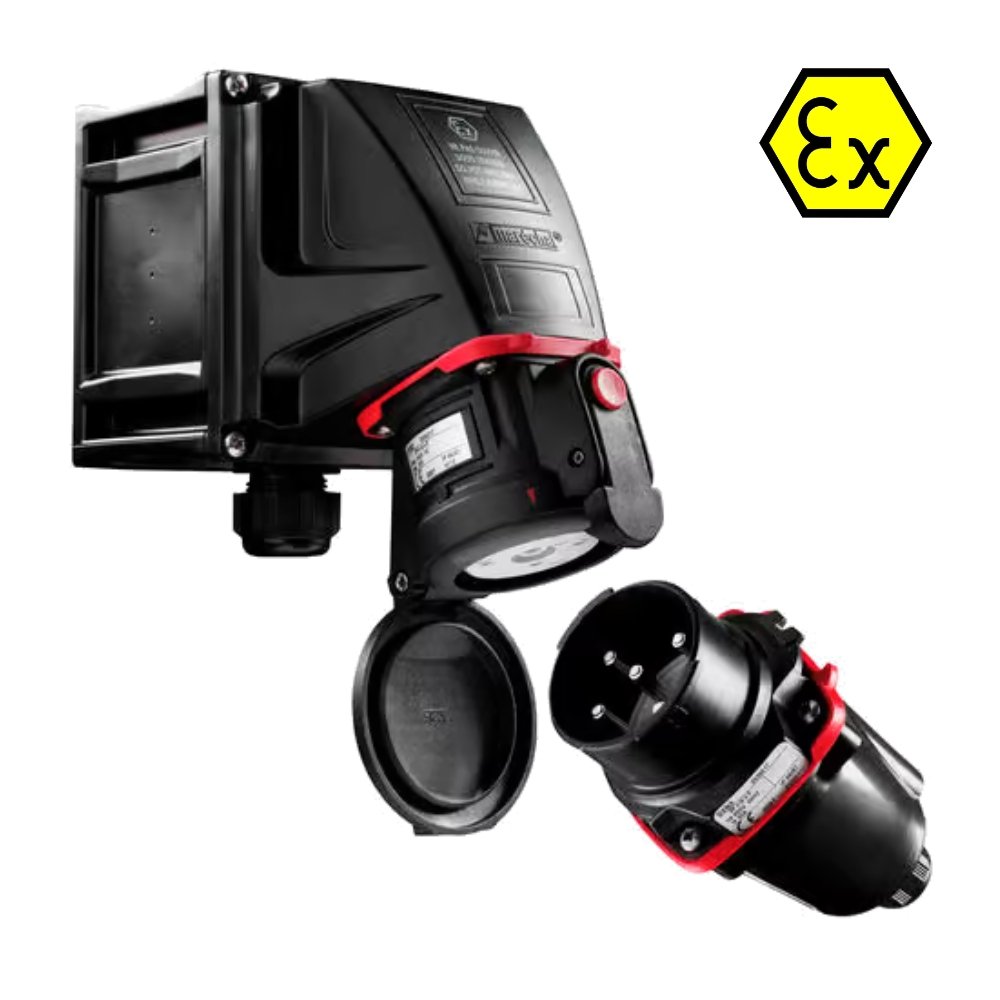

Marechal DXN3 ATEX Decontactor 32A 750V | Zone 1 & Zone 2 Hazardous Areas
£POA
CategoryATEX Plugs, Sockets & Connectors
- Quoted to your quantity
- Documentation on request
- International delivery
Product Overview
ATEX Marechal DXN3 Decontactor 32A 750V Inlet & Outlet
£POA
Request a Quote
Call Us: +44 (0)191 410 4292
The Marechal DXN3 Decontactor Plugs & Sockets are designed for industrial and hazardous area applications, offering a rated current of 32A and a maximum voltage of 750V. They deliver automatic IP66/IP67 protection when connected and watertight sealing with the lid closed, while ATEX certification for Zones 1, 2, 21 and 22 ensures safe operation in explosive atmospheres.
Marechal DXN3 Decontactor, Plugs & Sockets are expertly crafted to be used in hazardous areas and potentially explosive atmospheres, such as industrial environments, offering ATEX certification in Zone 1, Zone 2, Zone 21 & Zone 22, also making the DXN3 suitable for gas/dust based environments. The Marechal DXN3 provides a rated current of 32A and a maximum voltage of 750V and its plugs and sockets are automatically IP66/IP67 when connected.
The DXN3 is known for its socket with an integrated switch feature, allowing you to switch off the power on load for maximum electrical safety, as well as its compact and watertight sealed design, preventing any risk of environmental damage. Additionally, the Decontactor has an incorporated breaking capacity of AC-22 / AC-23 and impact resistant GRP casing. Marechal DXN3 Plugs, Sockets & Decontactors are also easy to install, cost-effective, packed with safety features, offers exceptional connection quality and is more effective than an automatic terminal block.
Contact our experts – order or find out more about the DXN3 and our full range of Marechal Plugs, Sockets & Decontactors. We provide technical advice, quotations, and fast delivery for UK and export projects.
Contact Our Experts
Load Break Capability of DXN1 Decontactor
Temperature Rating
- Gas temperature classes: T6 for an ambient T° between -40 and +40 °C,
T5 for an ambient T° between -40 and +60 °C - Dust surface temperature classes: Surface T° ≤57 °C for an ambient T° between -40 and +40 °C
Surface T° ≤77 °C for an ambient T° between -40 and +60 °C - Comply with EN 60309-1: 32 A / 750 V
The DXN3 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:
♦ Should you require assistance selecting or ordering hazardous area plugs and sockets, please contact our team. Please note, all Marechal socket outlets or inlets must be associated with a box, sleeve or handle to create a plug-socket assembly.
Marechal DXN Decontactors ATEX Range
A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal’s DXN range of plugs and sockets are suitable for rated currents from 20A up to 63A and maximum voltages from 550V up to 750V – high current, high temperature and fire resistant plugs are also available.
Hazardous Area Specialists
We provide competitive pricing, excellent customer service & fast worldwide delivery.
Technical Specifications
| Category | ATEX Plugs, Sockets & Connectors |
|---|
| DXN3 Electrical Features | |
|---|---|
| Rated current (with wiring according to standard) | 32A |
| Maximum voltage | 750V |
| IP protection — lid closed | IP66 / IP67 |
| IP protection — connected plug | IP66 / IP67 |
| Shock resistance | IK08 |
| Ambient temperature | -40°C to +60°C |
| Flexible wiring (min–max) | 2.5 mm² – 10 mm² |
| Stranded wiring (min–max) | 2.5 mm² – 16 mm² |
| Other wiring | On request |
| Keying positions | 24 |
| Protection mode | de |
| ATEX zones | 1 & 2, 21 & 22 |
| Voltage 50Hz | Polarity | Marechal Socket Outlet Female – DXN3 (32A) | Marechal Inlet Male – DXN3 (32A) |
|---|---|---|---|
| 20–24V | 2P | 253408A | 253808A |
| 190–230V | 3P+E | 2534033 | 2538033 |
| 220–250V | 1P+N+E | 2534015 | 2538015 |
| 380–440V | 3P+E | 2534013 | 2538013 |
| 380–440V | 3P+N+E | 2534017 | 2538017 |
| 480–500V | 3P+E | 2534093 | 2538093 |
| 480–500V | 3P+N+E | 2534097 | 2538097 |
| DXN3 Options | Product References |
|---|---|
| Locking pin for 2 padlocks Ø 4–8 mm (padlock not supplied) | Socket-outlet ref. 843 |
| Safety hasp for up to 6 padlocks | 613A54 |
| Larger release button | Socket-outlet ref. 453 |
| Inlet cap IP66/IP67 | 253A426 |
| Self-closing / self-returning lid | Socket-outlet ref. R |
| Compatibility with DSN socket-outlet (industrial range) | Contact us |
| Self-ejection | See page 204 |
| DXN3 Wall Boxes | Angle | Input | Product References |
|---|---|---|---|
| Wall box poly with EX poly cable gland | 30° 30° | 10–14 mm 12–18 mm | 253AB53 253AB5325P |
| Wall box poly without cable gland | 30° 30° | M20 M25 | 253AB3417 253AB53418 |
| Wall box poly with EX poly cable gland | 70° 70° 70° | 10–14 mm 12–18 mm 16–25 mm | 253AB8820P 253AB8825P 253AB8832P |
| Wall box poly with metal cable gland (earth continuity) | 70° 70° 70° | 8–10 mm 12–14 mm 18–24 mm | 253AB8820M 253AB8825M 253AB8832M |
| Wall box poly with terminal blocks (IECEx LCIE 16.0042X / LCIE 16 ATEX 3054X) | 70° 70° | 10–14 mm 12–18 mm | 253A08820P 253A08825P |
| DXN3 Handles | Input | Product References |
|---|---|---|
| Poly handle with gland EX poly | 10–14 mm 12–18 mm 16–25 mm 22–32 mm | 253A753 253A783 253A2533P 253A2540P |
| Straight poly handle with metal gland (earth continuity) | 8–10 mm 12–18 mm 18–24 mm | 253A25320M 253A25325M 253A25332M |
| DXN3 Sleeves | Product References |
|---|---|
| Inclined poly sleeve — 30° | 253A027 |
| Inclined poly sleeve — 70° | 253A757 |
| Specification | Marechal DXN1 | Marechal DXN3 | Marechal DXN6 |
|---|---|---|---|
| Rated Current (In) | 20A | 32A | 63A |
| Umax | 550V | 750V | 750V |
| Auxiliary Contacts (Optional) | – | 2 | 2 |
| Keying Positions (Different supplies & applications) | 24 | 24 | 24 |
| Protection Mode | de and tb | de and tb | de and tb |
| ATEX Zones | Zones 1 & 2 (Gas), Zones 21 & 22 (Dusts) | ||
