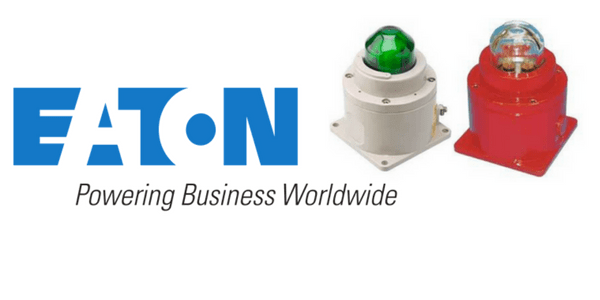

Eaton MEDC SM87 LU1/LU3 are ATEX beacons specifically designed for use in potentially explosive atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.
Eaton MEDC SM87 LU1/LU3 are ATEX beacons specifically designed for use in potentially explosive atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and Zone 2 hazardous areas.
The marine grade alloy or stainless steel enclosures of the ATEX beacons are suitable for use offshore or onshore, where lightweight combined with corrosion resistance and strength is required.
Stainless steel, one of the most durable materials available on the market, is both hard wearing and corrosion resistant, increasing the life of products in harsh environments and therefore reducing maintenance costs.
Contact our team for customer service, competitive quotations and availability from stock for the MEDC range of sounders, including MEDC SM87 LU1/LU3, for safe use in hazardous areas with explosive atmospheres.
The MEDC SM87 hazardous area beacon is available in a choice of variants.
The MEDC range of sounders and beacons from the Crouse Hinds series of Signalling & Alarms – a comprehensive range of Explosion Proof call points are also available with ATEX & IECEx certification and explosion protection to both Ex d (flameproof) and Ex ia (Intrinsically Safe) applications.
*Model dependent.
The following code is designed to help in selection of the correct MEDC hazardous area beacon with ATEX approval and certification.
Eaton MEDC
Eaton MEDC have developed ATEX products, including ATEX Beacons, designed for harsh and hazardous area conditions and where there is a risk of explosion due to the presence of flammable gas and dust atmospheres both onshore and offshore – since 1975 MEDC have been designers and manufacturers of alarm, signal, control and communications equipment.
Complete range of LV-HV Cable Joints, Terminations, Cleats & Glands are available to support installation of power, control and instrumentation cables up to 33kV – includes Cold Shrink for use in hazardous areas to provide electrical insulation and cable protection.
Thermon | EXHEAT | Abtech | Marechal Electric | 3M Electrical
| Category | ATEX Sounders & Beacons |
|---|
| Model | SM87 LU1 – Fluorescent. SM87 LU3 – Filament. |
| Hazardous Area Certifications | |
| ATEX Ex d | Cert. no. Baseefa 03ATEX0222. Certified to: EN60079-0, EN60079-1, EN60079-31. SM87 LU1: Ex d IIC T6 Gb, Ex tb IIIC T70ºC/T85ºC Db. SM87 LU3: Ex d IIC T5/T6 Gb, Ex tb IIIC T70ºC/T85ºC/T100ºC Db |
| IECEx Ex d | Cert. no. IECEx BAS 09.0059. Certified to: IEC60079-0, IEC60079-1, IEC60079-31 |
| SM87 LU1 | Ex d IIC T6 Gb, Ex tb IIIC T70ºC/T85ºC Db. SM87 LU3: Ex d IIC T5/T6 Gb, Ex tb IIIC T70ºC/T85ºC/T100ºC Db. |
| CSA | Cert no. 96406. Certified to: C22.2 Nos 0, 0.4, 0.5, 9, 30-M1986, 94-M91, 137-M1981. Class I, Div 1 & 2, Group D. |
| CUTR Ex d | SM87 LU1: 1Ex d IIC T6 Gb, Ex tb IIIC T70ºC/T85ºC Db. SM87 LU3: 1Ex d IIC T5/T6 Gb, Ex tb IIIC T70ºC/T85vC/T100vC Db |
| INMETRO Ex d | Exd IIC T4/T5/T6 Gb |
| CQST | Exd IIC T4/T5/T6 |
| Specifications | |
| Material | Grade 316 ANC4B Stainless Steel or Aluminium Alloy LM25TF with glass lens. |
| Finish | Epoxy paint finish as standard or to customer’s specification |
| Certified temp | ATEX/IECEx SM87LU1 = -20ºC to +55ºC (T6) SM87LU3 = -55ºC to +55ºC (T6) -55ºC to +70ºC (T5) |
| Voltage | 24, 48V d.c., 110V 220V 240V 254V a.c. 50Hz as standard. 60Hz available if required. |
| Fluorescent | 10 Watt tube light output 600 Lumens (240V + 254V a.c. versions). 5 Watt tube max. light output 250 Lumens (d.c. versions & 110V a.c.). |
| Filament | Single filament fitted as standard 10 watts. Others may be available, please contact MEDC with your requirements |
| Terminals | 7 Watts for 24V d.c., 48V d.c., 110V a.c., 220V a.c. 14 Watts for 240V a.c. 15 Watts for 254V a.c |
| Weight | Stainless Steel – 3.8kg each. Alloy – 2.5kg. |
| Ingress Protection | NEMA 4x & 6, IP66 & IP67 |
| Entries | SM87 LU1 – Up to 3 x M20 or M25 (not on RHS). SM87 LU3 – Up to 4 x M20 or M25. |
| Terminals | 4 off for up to 1.5sqmm cable |
Tell us your quantity and requirements — we reply within one business day.

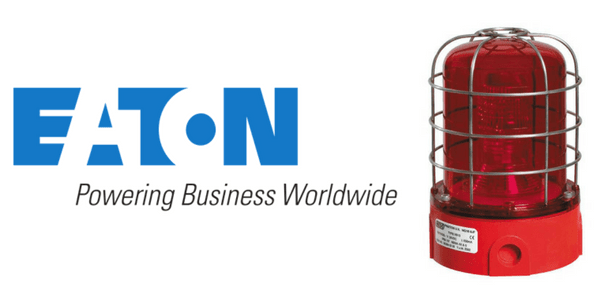

ATEX Beacons for Zone 1 & Zone 2 Hazardous AreasMEDC XB13 are listed beacons designed for use in potentially explosive atmospheres and harsh environmental conditions.

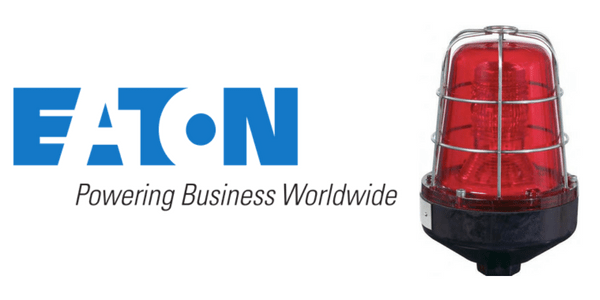

ATEX Beacons for Zone 1 & Zone 2 Hazardous AreasMEDC XB16 are listed beacons designed for use in potentially explosive atmospheres and harsh environmental conditions.

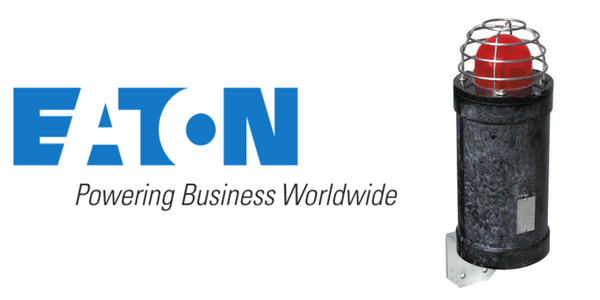

ATEX Beacons for Zone 1 & Zone 2 Hazardous AreasMEDC XB10 compact and lightweight 10 & 15 Joule ATEX beacons that have been designed for use in potentially explosive atmospheres and harsh environmental conditions in ATEX & IECEx Zone 1 and…
