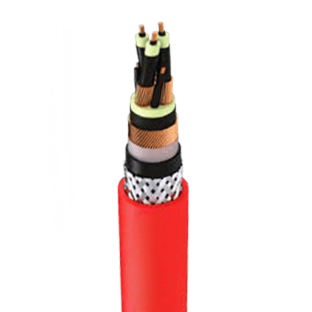

These cables are used for the connection of mobile operating equipments, in mines and underground excavations with hazardous environments, in stationary operation, e.g.high-voltage transformers in mining and tunnelling.
These cables are used for the connection of mobile operating equipments, in mines and underground excavations with hazardous environments, in stationary operation, e.g.high-voltage transformers in mining and tunnelling.
| Rated Voltage | 3,6/6 kV 6/10 kV 8,7/15 kV 2/20 kV 18/30 kV |
|---|---|
| Conductor | syntetic tape over wires |
| Outer Sheath | Special Halogen free and flame retardant HFFR compound |
| Working Temperature | According to DIN VDE 0298, Part 4 |
| Conductors | Flexible electrolytic copper wire acc. to DIN VDE 0295 – Class 5 |
| Insulation Main Cores | 3GI3 type EPR compound |
| Pilot Control Cores | 3GI3 type EPR compound |
| Protective Conductor | Made of plain copper wires or copper wire braiding laid-up concentrically around each main core |
| Electrical Field | Extruded inner and outer rubber semiconductive layer For |
| Control | 3,6/6 kV cables outer semiconductive layer only |
| Core Identification Main Cores | Natural coloring, design acc. to DIN VDE 0250 Part.1 |
| Pilot Cores | Black colored and number coded |
| Lay Up | Three main conductors laid-up with three pilot control cores in the outer interstice Protective cores are concentrically wrapped over insulation of power cores |
| Inner Sheath | Special Halogen free and flame retardant HFFR compound |
| Monitoring | Semiconductive tape + overall concentric lay of copper wires and |
| Inner Sheath | Special Halogen free and flame retardant HFFR compound |
| Armour | Galvanized steel wire braiding, coverage minimum 75 % |
| Colour | Red or Black |
| AC Test Voltage | 11 kV 17 kV 24 kV 29 kV 43 kV; Max. Permissible : |
| Operating Voltage AC | 4,2/7,2 kV 6,9/12 kV 10,4/18 kV 13,9/24 kV 20,8/36 kV; Max. Permissible : |
| Operating Voltage DC | 5,4/10,8 kV 9/18 kV 13,5/27 kV 18/36 kV 27/54 kV; Min. Bending Radius : |
| Current Carrying Capacity | Acc. to DIN VDE 0298 part 3 |
| Fixed | -40ºC … +80ºC |
| Mobile | +5ºC … +80ºC |
| Max. Tensile Load of cable | 15 N/mm² |
| Max. Torsion | 25º/m |
| Travel Speed | max. 30m/min; Minimum distance for : |
| change of direction | 20 X D |
| Cross Section (mm2) | Overall Diameter Mln-Max (mm) | Conductor Resistance At 20 °C (Ω/km) | Approxlmate welght (kg/km) | |
|---|---|---|---|---|
| 3,6/6 kV | ||||
| 3×25 + 3×16/3E + 3×2,5st + .L | 47.0 – 51.0 | 0.780 | 3600 | |
| 3×70 + 3×35/3E + 3×2,5st + .L | 56.1 – 61.2 | 0.272 | 5900 | |
| 3×95 + 3X50/3E + 3×2,5st + .L | 60.3 – 66.2 | 0.206 | 5900 | |
| 3×120 + 3×70/3E + 3×2,5st + .L | 63.8 – 70.2 | 0.161 | 8620 | |
| 3×150 + 3×70/3E + 3×2,5st + .L | 66.0 – 72.0 | 0.129 | 9860 | |
| 3×185 + 3×95/3E + 3×2,5st + .L | 70.0 – 74.0 | 0.106 | 11300 | |
| 6/10 kV | ||||
| 3×25 + 3×16/3E + 3×2,5st + .L | 54.0 – 57.0 | 0.780 | 4200 | |
| 3×35 + 3×16/3E + 3×2,5st + .L | 57.1 – 60.2 | 0.554 | 4650 | |
| 3×50 + 3×25/3E + 3×2,5st + .L | 60.4 – 63.6 | 0.386 | 5380 | |
| 3×70 + 3×35/3E + 3×2,5st + .L | 65.2 – 68.8 | 0.272 | 6450 | |
| 3×95 + 3X50/3E + 3×2,5st + .L | 68.0 – 71.9 | 0.206 | 7700 | |
| 3×120 + 3×70/3E + 3×2,5st + .L | 70.1 – 76.1 | 0.161 | 9260 | |
| 3×150 + 3×70/3E + 3×2,5st + .L | 73.0 – 78.0 | 0.129 | 10840 | |
| 3×185 + 3×95/3E + 3×2,5st + .L | 74.0 – 79.2 | 0.106 | 12400 | |
| 8,7/15 kV | ||||
| 3×25 + 3×16/3E + 3×2,5st + .L | 54.2 – 58.0 | 0.780 | 4530 | |
| 3×35 + 3×16/3E + 3×2,5st + .L | 55.0 – 60.0 | 0.554 | 5100 | |
| 3×50 + 3×25/3E + 3×2,5st + .L | 58.0 – 61.0 | 0.386 | 5840 | |
| 3×70 + 3×35/3E + 3×2,5st + .L | 65.2 – 67.0 | 0.272 | 7840 | |
| 3×95 + 3X50/3E + 3×2,5st + .L | 66.0 – 69.0 | 0.206 | 9120 | |
| 12/20 kV | ||||
| 3×25 + 3×16/3E + 3×2,5st + .L | 54.4 – 58.2 | 0.780 | 4920 | |
| 3×35 + 3×16/3E + 3×2,5st + .L | 55.4 – 60.0 | 0.554 | 5400 | |
| 3×50 + 3×25/3E + 3×2,5st + .L | 58.0 – 61.0 | 0.386 | 6200 | |
| 3×70 + 3×35/3E + 3×2,5st + .L | 65.2 – 67.0 | 0.272 | 7320 | |
| 3×95 + 3X50/3E + 3×2,5st + .L | 66.0 – 69.0 | 0.206 | 8630 | |
| 3×120 + 3×70/3E + 3×2,5st + .L | 68.7 – 74.0 | 0.161 | 9260 | |
| 3×150 + 3×70/3E + 3×2,5st + .L | 74.0 – 78.0 | 0.129 | 10460 | |
| 3×185 + 3×95/3E + 3×2,5st + .L | 78.0 – 82.0 | 0.106 | 11870 |
