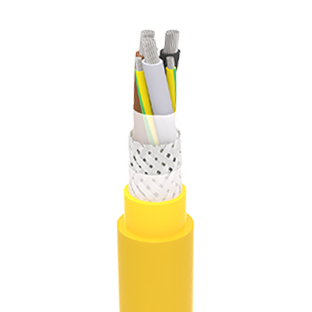

The cables are suitable for fixed installation and flexible operation as motor power supply cables for frequency converter controlled drives in the mining and tunneling
Rated voltage600 / 1000 V (U0/U)
ConductorElectrolytic annealed, class 5 stranded tinned copper wires
Insulation3GI3 type cross-linked elastomeric compound (VDE 0207 – Part 20)
Outer sheath5GM5 type cross-linked elastomeric compound (VDE 0207 – Part 21)
The cables are suitable for fixed installation and flexible operation as motor power supply cables for frequency converter controlled drives in the mining and tunneling
Technical Specifications
Rated voltage
600 / 1000 V (U0/U)
Conductor
Electrolytic annealed, class 5 stranded tinned copper wires
Insulation
3GI3 type cross-linked elastomeric compound (VDE 0207 – Part 20)
Outer sheath
5GM5 type cross-linked elastomeric compound (VDE 0207 – Part 21)
Operating temperature — in flexing use
-25°C to +80°C
Operating temperature — in fixed use
-40°C to +80°C
Operating temperature — max. conductor operating temp.
90°C
Screen
Concentric tinned copper wire braiding
Inner sheath
GM1b type cross-linked elastomeric compound (VDE 0207 – Part 21)
Color
Yellow or Black
AC test voltage
3 kV
Conductor short-circuit temp.
250°C (Max. allowable time 5 sec)
Min. installation temp.
-15°C
Min. bending radius
VDE 0298-3 Tab.3
Current carrying capacities
VDE 0298-4 Tab. 15
Cross Section (mm²)
Nominal Overall Diameter (mm)
Approximate Weight (kg / km)
Min.Bending Radius (free movement) (mm)
Max. Resistance of Conductors at 20°C (ohm / km)
2×1,5
12,50
228
63
13,70
2×2,5
14,30
291
72
8,21
2×10
22,20
764
111
1,95
2×16
24,40
964
122
1,24
3×35+3×16/3
33,20
2151
166
0,565
3×50+3×25/3
40,20
3171
201
0,393
3×70+3×35/3
45,40
4165
227
0,277
3×95+3×50/3
49,50
5161
248
0,21
3×120+3×70/3
56,50
6840
283
0,164
3×150+3×70/3
58,40
7537
292
0,132
3×185+3×95/3
63,00
8900
315
0,108
3×240+3×120/3
73,80
11846
369
0,0801
4×1,5
14,00
298
70
13,70
4×2,5
17,30
459
87
8,21
4×4
18,80
572
94
5,09
4×6
20,10
680
101
3,39
4×10
24,60
1029
123
1,95
4×16
28,20
1415
141
1,24
Features
Electromagnetic compatibility
Mechanical stresses resistant
Oil resistant
Tear resistant
UV resistant
Weather resistant
Certifications / Standards
Türk Loydu
