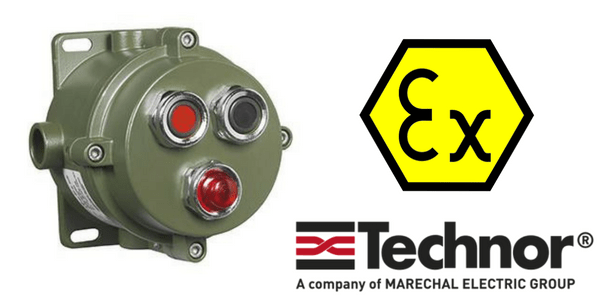

Push Button Control Station (Aluminium) Hazardous Area Zone 2 ATEX – Technor CP/EFDCN

Product Overview

Technor CP/EFDCN (Aluminium)

• Control Station Material: Aluminium with low content of copper
• IP Rating: IP66/IP67
• Ambient Temperature Range: -50°C to +60°C (ATEX), -60°C to +60°C (IECEx)
• Approvals: Certified 03ATEX0009 IECEx BKI 15.0002 TR CU
• Surface Treatment: Painted by green colour polyurethane painting cycle RAL6003 (other colour available upon request)
• Thread: Metric pitch 1.5, ANSI B1.20.1 NPT, UNI-6125
• Standard Certificate Label: Made by self adhesive UV and corrosion resistant polyester, approved by INERIS Laboratory
• Accessories Available: Internal anticondensate painting Traffolyte/Stainless steel certificate label Hot deep galvanized steel or Stainless Steel AISI316 stand / canopy.

ATEX Certification Code

• II 2 GD
• Ex d IIC T(*) Gb
• Ex t IIIC T(*) Db IP66
• * T6/T85°C, T5/T100°C, T4/T135°C

Hazardous area control station is designed to meet the requirements for use in industrial plants for indoor and outdoor applications and can be equipped with Ex d IIC certified standard and emergency push buttons, rotating switches, signalling lamps and measurement instruments.

Stop / Start Control Stations

Hazardous area local control stations and push buttons including emergency stop, start and stop/start configurations are ATEX approved for Zone 1, Zone 2 and Zone 22 – specified to provide machinery control where explosion proof control stations are required for hazardous area industries including oil, gas, petrochem, food and offshore.
