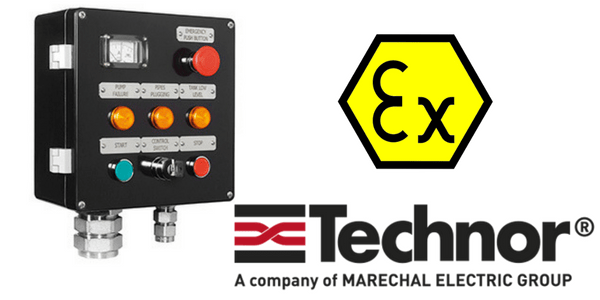

Hazardous area control station is designed to meet the requirements for use on and offshore, in petrochemical and marine applications and can be equipped with Ex de certified standard and emergency push…
Hazardous area control station is designed to meet the requirements for use on and offshore, in petrochemical and marine applications and can be equipped with Ex de certified standard and emergency push buttons, rotating switches, signalling lamps and measurement instruments.
Hazardous area local control stations and push buttons including emergency stop, start and stop/start configurations are ATEX approved for Zone 1, Zone 2 and Zone 22 – specified to provide machinery control where explosion proof control stations are required for hazardous area industries including oil, gas, petrochem, food and offshore.
| Category | ATEX Control Stations |
|---|
| Technor Control Station Part Number | Dimensions (mm) | Weight (kg) | ||||
| A | B | C | D | E | ||
| EFE-1212 | 120 | 122 | 90 | 82 | 106 | 0.75 |
| EFE-1222 | 120 | 220 | 90 | 82 | 204 | 1.06 |
| EFE-1616 | 160 | 160 | 90 | 110 | 140 | 1.29 |
| EFE-1626 | 160 | 260 | 90 | 110 | 240 | 1.71 |
| EFE-1636 | 160 | 360 | 90 | 110 | 340 | 2.15 |
| EFE-2526 | 250 | 255 | 120 | 200 | 235 | 2.65 |
| EFE-2540 | 250 | 400 | 120 | 200 | 380 | 3.65 |
| EFE-2560 | 250 | 600 | 120 | 200 | 580 | 5.235 |
| EFE-4140 | 405 | 400 | 120 | 355 | 380 | 5.58 |
| Technor Control Station Part Number | M20 / 1/2″ | M25 / 3/4″ | M32 / 1″ | M40 / 1″ 1/4 | M50 / 1″ 1/2 | M63 / 2″ | Cover Entries | ||||||
| A | B | A | B | A | B | A | B | A | B | A | B | ||
| EFE-1212 | 2 | 2 | 1 | 2 | 1 | 1 | 1 | 1 | – | – | – | – | 2 |
| EFE-1222 | 2 | 5 | 1 | 4 | 1 | 3 | 1 | 3 | – | – | – | – | 6 |
| EFE-1616 | 3 | 3 | 2 | 3 | 1 | 2 | 1 | 1 | – | – | – | – | 4 |
| EFE-1626 | 3 | 5 | 2 | 5 | 1 | 4 | 1 | 3 | – | 3 | – | – | 8 |
| EFE-1636 | 3 | 8 | 2 | 7 | 1 | 6 | 1 | 5 | – | 4 | – | – | 10 |
| EFE-2526 | 8 | 10 | 8 | 10 | 3 | 7 | 3 | 4 | 2 | 3 | 2 | 2 | 16 |
| EFE-2540 | 8 | 18 | 8 | 16 | 3 | 5 | 3 | 5 | 3 | 5 | 2 | 4 | 24 |
| EFE-2560 | 8 | 25 | 8 | 24 | 3 | 10 | 3 | 8 | 2 | 6 | 2 | 6 | 40 |
| EFE-4140 | 16 | 18 | 6 | 14 | 5 | 6 | 5 | 5 | 4 | 5 | 3 | 6 | 42 |
