Ramp Heating | Cables & Systems | Snow & Ice Melting

Product Overview

Ramp heating Cables & Systems

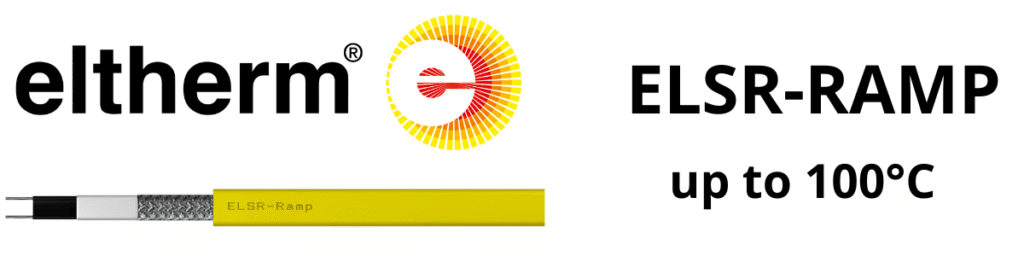

Eltherm ELSR-Ramp Cable

The ELSR-Ramp is a heating cable manufactured by Eltherm that is designed for outdoor applications to prevent snow and ice accumulation on ramps and walkways.

These self-regulating cables are designed to automatically adjust their heat output based on the surrounding temperature. When temperatures drop, the cables increase heat production, and when temperatures rise, the heat output decreases.

The ELSR-Ramp heat tracing cable is specifically designed for applications in ramps and walkways, where the cables need to be flexible, durable, and capable of withstanding heavy foot traffic. These ramp heating cables are typically installed underneath the surface of the ramp or walkway and can be connected to a control system that monitors and regulates the heat output.

The primary purpose of using ramp heater ELSR cables is to prevent the formation of ice and accumulation of snow, thereby ensuring safe and clear paths for pedestrians. This helps to prevent slip and fall accidents, especially in areas with cold climates or high precipitation.

Ramp HEATING Cable SPECIFICATION

• Nominal Supply Voltage : 230V
• Maximum Exposure Temperature : Power off 100°C, power on 80°C
• Minimum Installation Temperature : -20° Celsius
• Minimum Heating Cable Bend Radius : 50mm
• Cable Outer Jacket: TPE pressure-grouted with protective braid
• Protection: Protective Braid (Cu, tin plated)
• Bus Wire: Nickel plated copper 2.77 mm²
• Dimensions Approx: 17.2mm x 9.5mm
• Weight Approx (g/m): 253

Ramp heating technical Benefits

• Highly robust ramp heating cable
• Suited to complex installation conditions
• Flexible mounting for the heating of ramps, stairs and walkways
• Radially and longitudinally waterproof to suit all weather conditions
• Outer jacket is strongly grouted with protective braid

Also by using heating for ramps in areas prone to weather conditions, property owners can enhance safety and minimise liability – this can improve accessibility during the cold seasons and prolonged periods of sub-zero temperatures leading to the formation of dangerous levels of ice and snow accumulation.

Heating Circuit Length for elsr-ramp

Eltherm’s cables are specifically designed for easy installation and embedded or placed on top of existing surfaces. Additionally, the ELSR-RAMP cable offers minimal maintenance and are reliable with continuous solutions to keep surfaces free from snow and ice without manual intervention. The below table shows the exact heating circuit length for ELSR-RAMP.

hEATING cable circuit lengths on the following conditions:

• 230V nominal voltage
• Delayed action circuit breakers (C-characteristic) with 80% maximum load
• Maximum 10% line voltage drop on ramp heating cable bus wire
• Power connection to one trace heater cable end
• In certain installation situations, the ramp heating circuit length may vary – contact our team

Trace hEATING cable Applications

Ramp heater cables can be installed in various outdoor locations where snow and ice accumulation pose a risk. This includes the following:

• Parking garages entrances and exits
• Helicopter landing sites
• Disable access ramps
• Loading bay rampways
• Concrete ramps
• Stairs and footpaths

These heating cables are integral components of electric heating systems designed to automatically activate in response to temperature drops, ensuring surfaces remain free from snow and ice without manual intervention.

Ramp Heating Installation for Alleviation & Melting of Accumulated Snow & Ice Buildup
