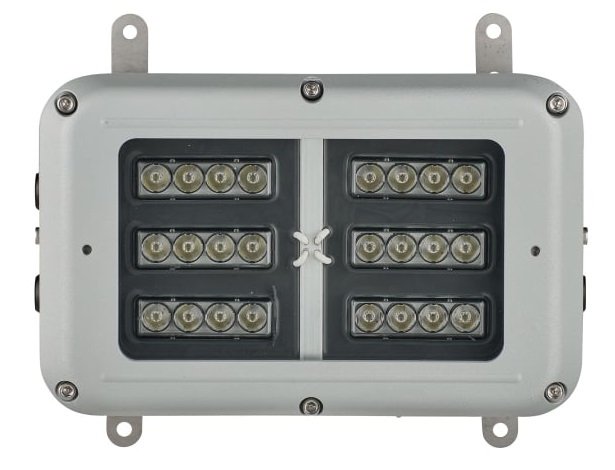

Raytec SPARTAN Bulkhead ATEX & IECEX LED Lighting
Hazardous Area & Process Heating · Raytec Hazardous Area Lighting Zone 1 Zone 2 ATEX IECEx UKCA Certified Part Finder

Raytec SPARTAN Bulkhead ATEX & IECEX LED Lighting

Spartan Bulkhead

CategoryATEX Lighting (Zone 1 & Zone 2)
Request a Quote
Request Datasheet
  • Quoted to your quantity
  • Documentation on request
  • International delivery

Product Overview

Hazardous Area Lighting

Spartan Bulkhead

Technical Specifications

CategoryATEX Lighting (Zone 1 & Zone 2)
Raytec SPARTAN Bulkhead Part ReferenceRaytec SPARTAN Bulkhead Part Reference
Zone 1/21 ATEX and IEC Ex LED Bulkhead luminaires
SPARTAN Zone 1/21 Bulkhead BL24
Circular Beam Pattern
SPX-BL24-W-1010SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam
SPX-BL24-W-1010-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output)
SPX-BL24-W-3030SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam
SPX-BL24-W-3030-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output)
SPX-BL24-W-5050SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam
SPX-BL24-W-5050-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output)
SPX-BL24-W-120120SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam
SPX-BL24-W-120120-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output)
Elliptical Beam Pattern
SPX-BL24-W-3510SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam
SPX-BL24-W-3510-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output)
SPX-BL24-W-6025SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam
SPX-BL24-W-6025-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output)
SPX-BL24-W-8030SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam
SPX-BL24-W-8030-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output)
SPX-BL24-W-12050SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam
SPX-BL24-W-12050-EMX25SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output)
Zone 1/21 ATEX and IEC Ex LED Bulkhead luminaires complete with Exit Sign Kit
SPX-BL24-W-12050-EM100-LO-EXITSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Low Output Intelligent Emergency Variant (100% Output) – With Exit Sign Kit
SPX-BL24-W-12050-EMX25-EXITSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) – With Exit Sign Kit
Zone 1/21 ATEX and IEC Ex LED Spigot Mount Bulkhead luminaires
Circular Beam Pattern
SPX-BL24-W-1010-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam Spigot Mount 34mm entry
SPX-BL24-W-1010-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam Spigot Mount 48mm entry
SPX-BL24-W-1010-EMX25 -SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-1010-EMX25 -SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-3030-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam Spigot Mount 34mm entry
SPX-BL24-W-3030-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam Spigot Mount 48mm entry
SPX-BL24-W-3030-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-3030-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-5050-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam Spigot Mount 34mm entry
SPX-BL24-W-5050-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam Spigot Mount 48mm entry
SPX-BL24-W-5050-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-5050-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-120120-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam Spigot Mount 34mm entry
SPX-BL24-W-120120-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam Spigot Mount 48mm entry
SPX-BL24-W-120120-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-120120-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
Elliptical Beam Pattern
SPX-BL24-W-3510-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam Spigot Mount 34mm entry
SPX-BL24-W-3510-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam Spigot Mount 48mm entry
SPX-BL24-W-3510-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-3510-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-6025-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam Spigot Mount 34mm entry
SPX-BL24-W-6025-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam Spigot Mount 48mm entry
SPX-BL24-W-6025-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-6025-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-8030-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam Spigot Mount 34mm entry
SPX-BL24-W-8030-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam Spigot Mount 48mm entry
SPX-BL24-W-8030-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-8030-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-12050-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam Spigot Mount 34mm entry
SPX-BL24-W-12050-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam Spigot Mount 48mm entry
SPX-BL24-W-12050-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-12050-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
Zone 2/22 ATEX and IEC Ex LED Bulkhead luminaires
SPARTAN Zone 2/22 Bulkhead BL24
Circular Beam Pattern
SPZ-BL24-W-1010SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam
SPZ-BL24-W-1010-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-3030SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam
SPZ-BL24-W-3030-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-5050SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam
SPZ-BL24-W-5050-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-120120SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam
SPZ-BL24-W-120120-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output)
Elliptical Beam Pattern
SPZ-BL24-W-3510SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam
SPZ-BL24-W-3510-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-6025SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam
SPZ-BL24-W-6025-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-8030SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam
SPZ-BL24-W-8030-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-12050SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam
SPZ-BL24-W-12050-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output)
Zone 2/22 ATEX and IEC Ex LED Bulkhead luminaires complete with Exit Sign Kit
SPZ-BL24-W-12050-EMX100-LO-EXITSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam – Low Output Intelligent Emergency Variant (100% Output) – With Exit Sign Kit
SPZ-BL24-W-12050-EMX25-EXITSPARTAN Bulkhead 24 LED, Zone 2/22 White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) – With Exit Sign Kit
Zone 2/22 ATEX and IEC Ex LED Spigot Mount Bulkhead luminaires
Circular Beam Pattern
SPZ-BL24-W-1010-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam Spigot Mount 34mm entry
SPZ-BL24-W-1010-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam Spigot Mount 48mm entry
SPZ-BL24-W-1010-EMX25 -SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-1010-EMX25 -SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPZ-BL24-W-3030-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam Spigot Mount 34mm entry
SPZ-BL24-W-3030-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam Spigot Mount 48mm entry
SPZ-BL24-W-3030-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-3030-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPZ-BL24-W-5050-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam Spigot Mount 34mm entry
SPZ-BL24-W-5050-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam Spigot Mount 48mm entry
SPZ-BL24-W-5050-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-5050-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPZ-BL24-W-120120-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam Spigot Mount 34mm entry
SPZ-BL24-W-120120-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam Spigot Mount 48mm entry
SPZ-BL24-W-120120-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-120120-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
Elliptical Beam Pattern
SPZ-BL24-W-3510-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam Spigot Mount 34mm entry
SPZ-BL24-W-3510-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam Spigot Mount 48mm entry
SPZ-BL24-W-3510-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-3510-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPZ-BL24-W-6025-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam Spigot Mount 34mm entry
SPZ-BL24-W-6025-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam Spigot Mount 48mm entry
SPZ-BL24-W-6025-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-6025-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPZ-BL24-W-8030-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam Spigot Mount 34mm entry
SPZ-BL24-W-8030-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam Spigot Mount 48mm entry
SPZ-BL24-W-8030-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-8030-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPZ-BL24-W-12050-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam Spigot Mount 34mm entry
SPZ-BL24-W-12050-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam Spigot Mount 48mm entry
SPZ-BL24-W-12050-EMX25-SPSPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPZ-BL24-W-12050-EMX25-SP48SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
