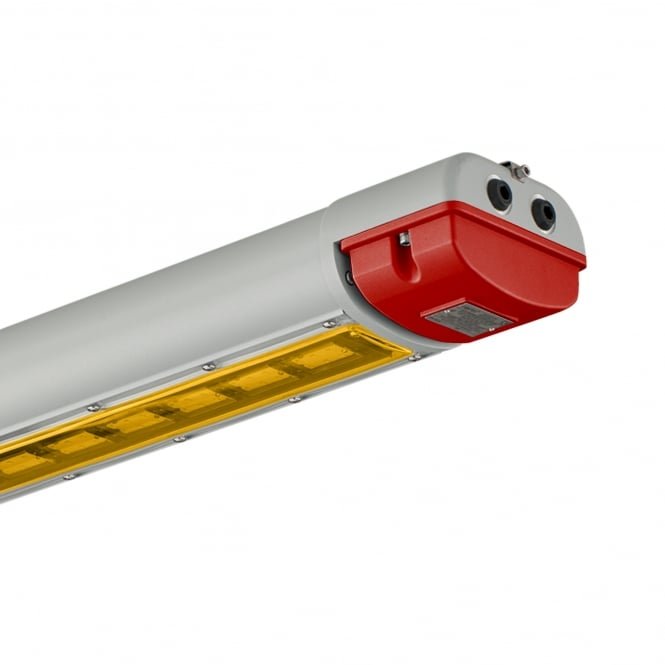

Raytec SPARTAN Wildlife Friendly Linear Emergency Light Fittings Zone 1 & Zone 21 | WL84

Product Overview

Raytec SPARTAN SPX-WL84-4K-A-EMX25

Product Category: ATEX Lighting

Product Type: Zone 1 Light Fittings

• ATEX and IEC Ex Approved – Zone 1
• Wildlife Friendly, Long Life LED Linear Light Fitting
• High Lumen Output, Amber LED Light Fitting- 2,500 Lumens

Raytec SPARTAN Linear Light Fitting

• Zone 1 & Zone 21 ATEX and IEC Ex LED Linear
• SPARTAN Zone 1/21 SPX-WL
• Dominant Wavelength – 600nm

View the Raytec SPARTAN range of Hazardous Area Lighting for Potentially Explosive Atmospheres (EX).

• ATEX Rating – ATEX and IEC Ex rated for Gas and Dust
• Hazardous Area Rating – Zone 1 – Gas and Dust
• Certificates – CML14ATEX3119 & IEC Ex CML 15.0001 UL/CSA, including C1D2
• Gas – II2 G D Ex e mb op is IIC T5 Gb Ta= -40°C to +55°C (-20°C to +50°C for emergency variants)
• Dust – Ex tb op is IIIC T75°C Db Ta= -40°C to +55°C (-20°C to +50°C for emergency variants)

Intelligent Emergency Battery Back-Up

• Function: Self-testing intelligent emergency
• System health indicator: Tri-colour LED indicator
• Emergency Duration: Up to 3hrs at 25% power
• Emergency Battery: Ni/Cd 12V
• Emergency Charge Time: 20 hours

linear light fittings Zone 1/21

Raytec SPARTAN Linear light fitting WL84 – contact our team to request a competitive quotation, place an order for delivery from stock or to receive expert technical specification support.

Ask about our FREE DESIGN SERVICE for hazardous area lighting systems – we supply a complete range of Ex d Flameproof and Explosion Proof equipment for potentially explosive atmospheres.
