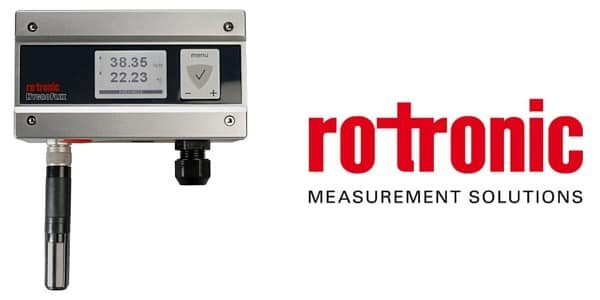

Rotronic Hygroflex5 HF5 measures relative humidity and temperature HVAC transmitter achieves a high degree of accuracy that has rarely been seen before.
Rotronic Hygroflex5 HF5 measures relative humidity and temperature HVAC transmitter achieves a high degree of accuracy that has rarely been seen before.
In combination with advanced sensor technology and integration, the Rotronic Hygroflex5 HF5 provides superb functionality, taking humidity, temperature and dew point measurement to a whole new level of performance and reliability (< 2 %rh / 0.3 K).
Based on Airchip 3000 technology, the unique features of the Rotronic Hygroflex HF5 such as the advanced sensor technology and integration provide superb precision and state-of-the-art functionality.
Typical applications and industries include HVAC, food industry, building services equipment, paper, textile and pharmaceutical.
In addition to being used with the Rotronic HygroClip 2, the HC2-S probe can be used as a standalone device using either the analog output signals or the probe digital interface.
Connectors, cables and digital interface adapters are available to this purpose. Digital integration with OEM applications is facilitated by the probe communication protocol options.
Key user functions of the Rotronic Hygroflex5 HF5 humidity and temperature transmitter include:
Rotronic Hygroflex5 HF5 probes measure humidity, temperature and also calculate dew/frost point.
Features
Whether a simple plug and play probe is required to measure ambient conditions or a more sophisticated cable probe for high temperature or special applications, the options available for the Rotronic Hygroflex5 HF5 mean most requirements can be met.
All Hygroclip2 probes can be individually calibrated and adjusted to increase measurement precision.
The range of Hygroclip2 probes available include:
The pharmaceutical industry is one of the largest users of humidity measurement equipment. Most drugs are sensitive to variations in humidity and moisture levels, so these need to be considered and controlled using measurement instruments, probes and sensors for the final products to be consistent in quality and performance.
Humidity Measurement Applications
Humidity instruments are used to both control (transmitters) and monitor (transmitters or data loggers) these conditions during “accelerated conditions” drug testing.
Production machines, driers, tableters, and coaters are all sensitive to humidity – quality control requires machine monitoring, area monitoring and final product Equilibrium Relative Humidity (ERH) measurement.
Clean room environments are humidity critical – environmental monitoring system (EMS) and measurement is validated to conform with regulatory requirements.
View the current Rotronic catalogue :
| Brand | Rotronic |
|---|---|
| Category | Process Instrumentation |
| Probe Accuracy | Measurement Range | Standard Output Scaling | Weight | Min. / Max. load | Start-Up | Current Consumption | Trend Indicators |
| probe dependent | probe dependent | 0…1 V = -40…60 °C / 0…100 %rh | 220g/500g | V-signal: ≥1 kΩ/V / mA-signal: ≤500 Ω | HF53/54/55/56: 3s, HF52: 60s | HF52: max 40 mA | Yes |
| Power Consumption | Probe Cable Extension | Response Time T 63 | Housing | Max. Air Velocity | Type Of Output Signals | Probe Material |
| HF52: max 40 mA | Passive: max. 5 m, active 100 m | probe dependent | Aluminium/ABS | 20 m/s at probe | 0…1 V, 0…5 V, 0…10 V, 0(4)…20 mA | PEEK |
| Rotronic Hygroprobe2 Operating range: – 50…100 °CHousing: polycarbonate or stainless steel | Rotronic Hygroprobe for special applications Operating range: -100…200 °C and 0…100 bar (0…1450 PSI)Variations: polycarbonate or stainless steel(1): HF520 transmitter is not compatible with industrial metal probes |
| Low Dew Point | Flow & Air Velocity | Process Pressure | Carbon Dioxide | Temperature |
Tell us your quantity and requirements — we reply within one business day.

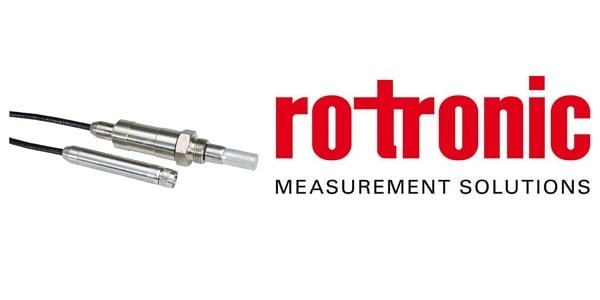

Relative Humidity Measurement – Rotronic Instruments Probes, Sensors, TransmittersRotronic HC2-IE-EX is a highly accurate relative humidity measurement probe capable of measuring both humidity and temperature as well as calculating dew/frost point and is ATEX certified for hazardous area applications.

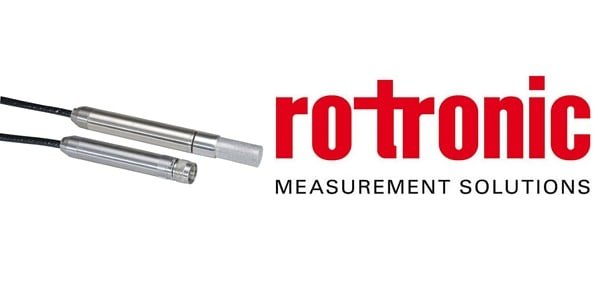

Relative Humidity Measurement – Rotronic Instruments Probes, Sensors, TransmittersRotronic HC2-IM-EX is a highly accurate relative humidity measurement probe capable of measuring both humidity and temperature as well as calculating dew/frost point and is ATEX certified for hazardous area applications.

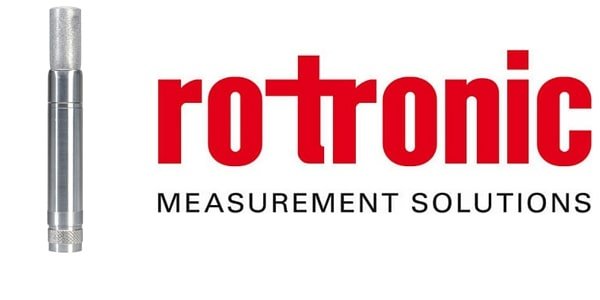

Relative Humidity Measurement – Rotronic Instruments Probes, Sensors, TransmittersRotronic HC2-SM-EX is a highly accurate relative humidity measurement probe capable of measuring both humidity and temperature as well as calculating dew/frost point and is ATEX certified for hazardous area applications.
