Product Overview

Self Regulating Trace Heating

Trace Heating Cable | Eltherm ELSR-M

Eltherm ELSR-M is a versatile self-regulating trace heating cable that provides process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 65° Celsius.

The self-regulating trace heating technology allows the heating cable to increase or decrease its heat output based on the ambient temperature, providing energy-efficient operation and preventing overheating. ELSR-M is suitable for use in various industrial applications where maintaining consistent temperatures is critical for process integrity and safety including:

• Heat tracing on pipes, pumps and valves
• Food processing industry
• Automotive
• Heating of tube bundle cables for water analysis
• Heat tracing on vessels

Our Team of Trained Sales Engineers are available to advise and support your trace heating enquiries – this includes design and supply of complex multi-kilometre, major-project systems to custom heat trace cable kits for the protection of winterisation against plant and factory facilities.

Eltherm ELSR-M Trace HEAting CABLE – SPECIFICATION

Eltherm ELSR-M self-regulating trace heating wattages per metre at 10°C – 10 and 15 watts.

• Nominal Supply Voltage : 230v
• Maximum Exposure Temperature : Power off 65°C, power on 65°C
• Minimum Installation Temperature : -45° Celsius
• Minimum Heater Cable Bend Radius : 25mm
• Heater Cable Outer Jacket: TPE-O
• Bus Wire: Nickel plated copper

1. Bus wire – nickel plated copper, 0.62 mm²
2. Self-regulating heating element
3. Insulation
4. Protective braid – (Cu, tin plated)
5. Outer jacket – TPE-O
6. Protective conductor connection – see 4 or Cu, tin plated with aluminium foil

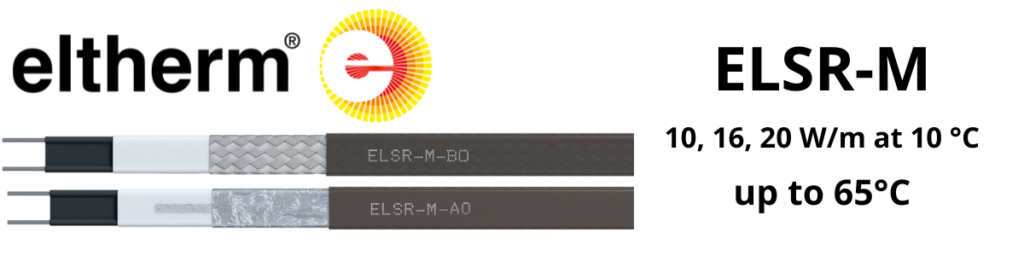

Eltherm ELSR-M self-regulating heating cables are available in two cable designs. The BO version of the ELSR-M heating cable has a protective tin-plated copper braid for all low – temperature and medium – temperature applications.

• BO: Protective braid and a thermoplastic outer jacket
• AO: Aluminium foil and a thermoplastic outer jacket

Eltherm ELSR- M BENEFITS

• Four nominal outputs
• UV-resistant
• Moisture proof
• Highly durable
• Efficient heat distribution
• Junction box for pipe mounting

Eltherm ELSR- M heating cables provide temperature maintenance and frost protection to pipework and mechanical services in all industries – typical applications include heating process pipework, instrument lines and storage tanks to maintain viscosity or prevent frost damage as an integral work-task of plant Winterisation.

Eltherm ELSR-M cables utilise cold-applied installation components to complete the trace heating system – no requirement for “hot-working” permit applications in potentially explosive atmospheres, including Zone 1 and Zone 2 hazardous areas.

Trace Heating Cable Selection Table – Eltherm ELSR-M

Contact our team for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heating cable for your application.

ELSR-M Heating circuit length

*1 Heating circuit lengths on the following conditions:

• 230 V nominal voltage
• Delayed action circuit breakers (C-characteristic) with 80 % max. load
• Maximum 10 % line voltage drop on heating cable bus wire
• Power connection to one heater end
• In certain installation situations, the heating circuit length may vary. Please contact our team

Eltherm video providing a step-by-step termination of ELSR-N heater cable using a EL-ECN termination kit.

Self-Regulating Trace Heating System

A Trace Heater
B Power Connection Kit
C End Termination Kit
D Junction Box
E Pipe Mounting Bracket
F Fasteners and Self-adhesive Tapes, Foils
G Insulation Bushing
H Warning Sign
I Temperature Controller
J Temperature Sensor
