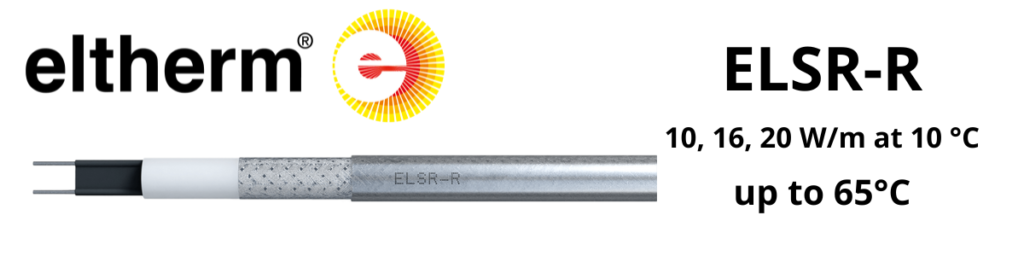

Trace Heating Cable | Eltherm ELSR-R

Eltherm ELSR-R is a versatile self-regulating trace heating cable provide process temperature maintenance and frost protection to pipework, instrument lines, tanks and drums up to 65° Celsius. The ELSR-R heater cable has a round design and is ideal for protecting the doors and seals of refrigerating chambers against frost and is often used in cooling water lines of breweries and drinks manufacturers.

The self-regulating trace heating technology allows the heating cable to increase or decrease its heat output based on the ambient temperature, providing energy-efficient operation and preventing overheating. ELSR-R is suitable for use in various industrial applications where maintaining consistent temperatures is critical for process integrity and safety including:

• Freeze prevention
• Special solutions
• Doors and seals of refrigerating chambers
• Cooling water lines of breweries and drink manufacturers

Our Team of Trained Sales Engineers are available to advise and support your trace heating enquiries – this includes design and supply of complex multi-kilometre, major-project systems to custom heat trace cable kits for the protection of winterisation against plant and factory facilities.

Eltherm ELSR-R HEATing CABLE – SPECIFICATION

Eltherm ELSR-R Heater Cable wattages per metre at 10°C – 19, and 27 watts.

• Nominal Supply Voltage : 230v
• Maximum Exposure Temperature : Power off 65°C, power on 65°C
• Minimum Installation Temperature : -30° Celsius
• Minimum Heater Cable Bend Radius : 30mm
• Heater Cable Outer Jacket: Fluoropolymer
• Bus Wire: Nickel plated copper

1. Bus wire – nickel plated copper, 0.62 mm²
2. Self-regulating heating element
3. Insulation
4. Protective braid – (Cu, tin plated)
5. Outer jacket – Fluoropolymer

ELTHERM ELSR R Benefits

• Round design
• Moisture proof
• UV-resistant
• Ideal for profile installation

The ELSR-R line is used where its round geometry facilitates installation in sealing and door profiles. Typical applications are doors and gateways to cold-storage facilities, cold water lines in beverage production and breweries.

Trace Heating Cable Selection Table – Eltherm ELSR-R

Contact our team for technical guidance, heat loss calculations for pipework systems and optimum specification of the correct trace heating cable for your application.

ELSR-R Heating circuit length

*1 Heating circuit lengths on the following conditions:

• 230 V nominal voltage
• Delayed action circuit breakers (C-characteristic) with 80 % max. load
• Maximum 10 % line voltage drop on heating cable bus wire
• Power connection to one heater end
• In certain installation situations, the heating circuit length may vary. Please contact our team

Eltherm ELSR-N HEATer CABLES

Eltherm video providing a step-by-step termination of ELSR-N heater cable using a EL-ECN termination kit.

Self-Regulating Trace Heating System

A Trace Heater
B Power Connection Kit
C End Termination Kit
D Junction Box
E Pipe Mounting Bracket
F Fasteners and Self-adhesive Tapes, Foils
G Insulation Bushing
H Warning Sign
I Temperature Controller
J Temperature Sensor
