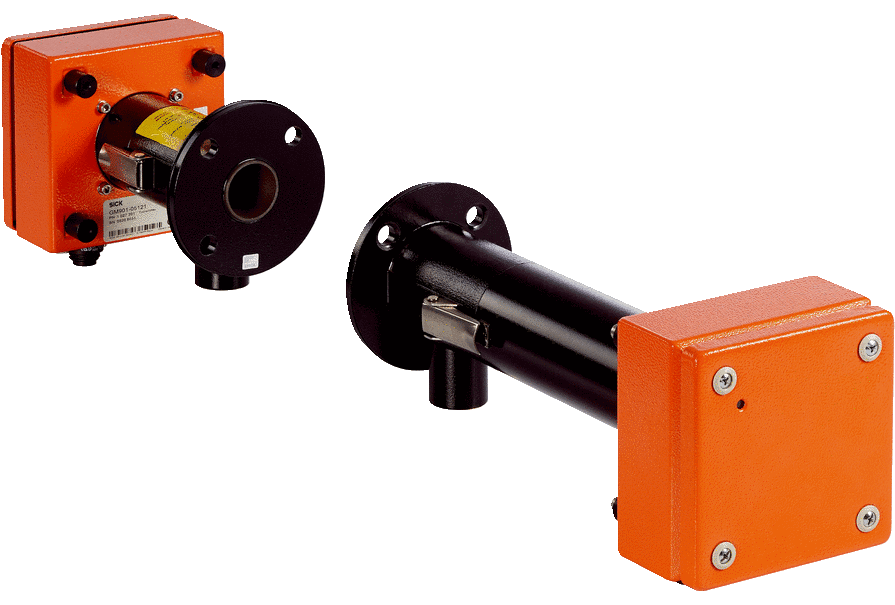

The SICK GM901 in-situ gas analyser provides efficient process analysis, detection and measurement of carbon monoxide (CO) gas. It is available as either a cross-duct or probe type version. making SICK GM901 gas analysers well suited for difficult carbon monoxide (CO) gas measuring tasks such as high pressure, critical flow profiles, or high measuring gas concentrations.
GM901 in-situ gas analysers are ideal for applications such as; the optimisation of all kinds of combustion processes or biomass combustion plants, CO monitoring in coal mills, process monitoring in the food industry, control of small boiler facilities, and during roasting processes.
Key Product Categories: Control Panels | Plugs & Sockets | Isolators | Enclosures & Junction Boxes | Lighting | Control Stations | Motor Starters | Heat Trace Cables & Systems | Gas Detection & Detectors | Fire Detection & Detectors | Heat Detectors | Electrical Heating & Heaters
Also Process Instrumentation Products: Ashcroft Pressure Gauges | ASCO Valves | Katronic Flow Meters | KROHNE Flow Meters | VEGA Level Sensors | Rotronic Temperature & Humidity Sensors | SIKA Pressure Gauges
| Brand | SICK |
|---|---|
| Category | Gas Detection |
| Description | Cross-duct version in-situ gas analyser |
| Measured Values | CO |
| Measurement Principles | Gas filter correlation |
| Measuring Distance | 0.5 m … 8 m |
| Measuring Ranges | CO: 0 … + 500 ppm / 0 … 20,000 ppm (Relative to 1m measuring path) |
| Response Time (t90) | 5 s … 360 s |
| Accuracy | ± 5 % of measuring range full scale |
| Process Temperature | ≤ +250 °C or with extended calibration: ≤ +430 °C |
| Process Pressure | ≤ 30 hPa (depending on purge air supply) |
| Process Gas Humidity | Non-condensing |
| Ambient Temperature | –20 °C … +55 °C |
| Conformities | TUEV type-examination |
| Electrical Safety | CE |
| Enclosure Rating | IP65 |
| Mounting | Mounting flange, DN125, PN6 Mounting flange, ANSI, 5″ |
| Power Supply | Voltage: 115 V/230 V Frequency: 50 Hz/60 Hz Power consumption: ≤ 75 W |
| Test Functions | Manual span check with gas-filled cell |
| Sender Unit | |
| Description | Sender unit of the cross-duct measuring system |
| Electrical Safety | CE |
| Dimensions (W x H x D) | 150 mm x 169 mm x 240 mm |
| Weight | 3 kg (including purge air fixture) |
| Receiver Unit | |
| Description | Receiver unit of the cross-duct measuring system |
| Electrical Safety | CE |
| Dimensions (W x H x D) | 150 mm x 169 mm x 404 mm |
| Weight | 3 kg (including purge air fixture) |
| Description | Measuring probe version in-situ gas analyser |
| Measured values | CO |
| Measurement Principles | Gas filter correlation |
| Measuring Ranges | CO: 0 … 250 ppm / 0 … 10,000 ppm (Relative to 1m measuring path) |
| Response Time (t90) | 5 s … 360 s |
| Accuracy | ± 5 % of measuring range full scale |
| Process Temperature | Open measuring probe (GMP): ≤ +250 °C With extended calibration: ≤ +430 °C Gas-testable measuring probe (GPP): ≤ +220 °C |
| Process Pressure | ≤ 120 hPa |
| Process Gas Humidity | Non-condensing |
| Ambient Temperature | –20 °C … +55 °C |
| Conformities | TUEV type-examination U.S. EPA conform |
| Electrical Safety | CE |
| Enclosure Rating | IP65/NEMA 4 |
| Dimensions (W x H x D) | 367 mm x 418 mm x 1,414 mm |
| Mounting | Single mounting point on the duct Mounting flange, DN125, PN6 Mounting flange, ANSI, 5″ |
| Power Supply | Voltage: 115 V/230 V Frequency: 50 Hz/60 Hz Power consumption: ≤ 60 W |
| Test Functions | Manual span check with gas-filled cell |
| Description | The control unit serves as the human machine interface and is responsible for data processing and output as well as control and monitoring functions. |
| Electrical Safety | CE |
| Enclosure Rating | IP65/NEMA 4x |
| Analog Outputs | 1 output: 0/4 … 20 mA, + 500 Ω Electrically isolated |
| Analog Inputs | 1 input: 0 … 20 mA, 100 Ω |
| Digital Outputs | 2 relay contacts: + 150 V AC, 1 A, 60 W / 125 V DC, 1 A, 30 W |
| Digital Inputs | 1 input: + 5 V, 2 mA |
| Communication Interface | Serial PROFIBUS DP CAN bus Type of fieldbus integration: RS-232/RS-485 Function: Proprietary service interface/Internal system bus |
| Number | 1 |
| Indication | LC display Status LEDs: “Operation”, “Service”, “Warning” and “Malfunction” |
| Input | Arrow keys & Functional keys |
| Model | Steel sheet enclosure |
| Dimensions (W x H x D) | 200 mm x 346 mm x 97.5 mm |
| Weight | 4.3 kg |
| Power Supply | Voltage: 115 V/230 V Frequency: 50 Hz/60 Hz Power consumption: ≤ 50 W |
| Description | For extending the internal CAN bus connection with a cable provided by the customer |
| Electrical Safety | CE |
| Dimensions (W x H x D) | 175 mm x 110.5 mm x 175 mm |
| Weight | 3 kg |
| Power Supply | Voltage: 115V/230V Frequency: 50Hz/60 Hz |
| Integrated Components | On-board 24V power supply for the sender/receiver unit |
| Description | Unit to provide dust-free air for flushing of optical surfaces |
| Gas Flow Rate | 38 m³/h … 63 m³/h At 30 hPa counter pressure, depending on low pressure inside the filter |
| Ambient Temperature | –40 °C … +55 °C |
| Electrical Safety | CE |
| Enclosure Rating | IP54 |
| Dimensions (W x H x D) | 550 mm x 550 mm x 258 mm |
| Weight | 18 kg |
| Power Supply – Three-Phase Current | Δ: 200 … 240 V, 50 Hz, 2,6 A, 400 W Y: 345 … 415 V, 50 Hz, 1,5 A, 400 W Δ: 200 … 275 V, 60 Hz, 2,6 A, 500 W Y: 380 … 480 V, 60 Hz, 1,5 A, 500 W Δ: 270 … 330 V, 50 Hz, 2,0 A, 400 W Y: 465 … 570 V, 50 Hz, 1,16 A, 400 W Δ: 290 … 360 V, 60 Hz, 2,1 A, 500 W Y: 500 … 600 V, 60 Hz, 1,26 A, 500 W Δ: 230 V, 50 Hz, 2,7 A, 370 W Δ: 115 V, 60 Hz, 3,0 A, 450 W Δ: 220 … 270 V, 50 Hz, 2,5 A, 400 W Y: 380 … 465 V, 50 Hz, 1,45 A, 400 W Δ: 240 … 290 V, 60 Hz, 2,6 A, 500 W Y: 415 … 500 V, 60 Hz, 1,55 A, 500 W |
| Auxiliary Gas Connections – Purge Air | Hose nozzle 40 mm |
| Test Functions | Pressure switch (switching point –35 hPa) |
| Integrated Components | 2-step air filter, type Europiclon, dust capacity 200 g |
