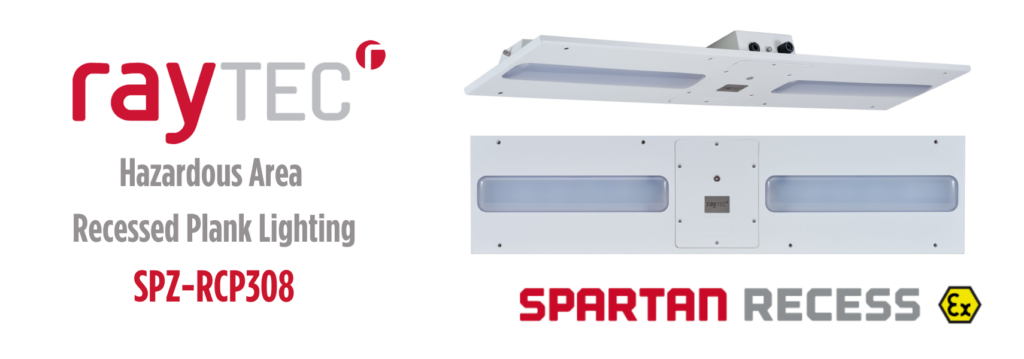

SPARTAN Recess Zone 2 Recessed Plank Hazardous Area Lights | SPZ-RCP308
SPARTAN Recess SPZ-RCP308
ATEX Lighting (Zone 1 & Zone 2)

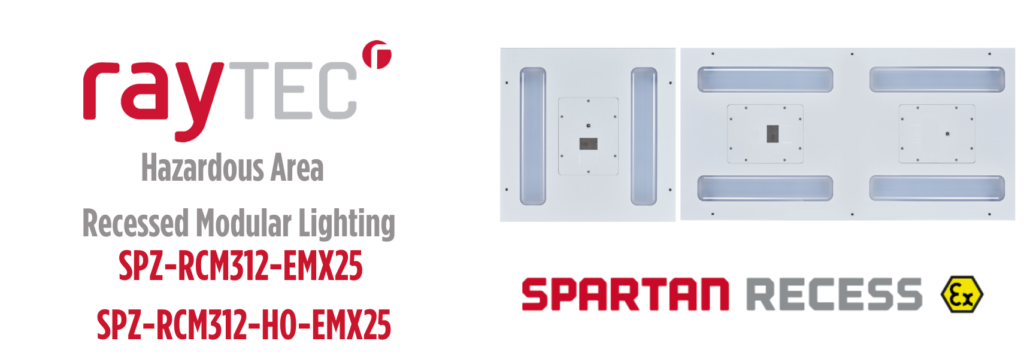

SPARTAN Recess Zone 2 Modular Emergency LED ATEX Lighting | SPZ-RCM312-EMX25
SPARTAN Recess SPZ-RCM312-EMX25
CategoryATEX Lighting (Zone 1 & Zone 2)
- Quoted to your quantity
- Documentation on request
- International delivery
Product Overview
SPARTAN Recessed Modular Lighting
SPARTAN Recess SPZ-RCM312-EMX25
Zone 2 & 22 SPZ Recessed Modular Light Fittings – Modular ATEX, UKCA and IECEx Rated for Gas & Dust Explosive Atmospheres
The new SPARTAN recessed modular Light range of ATEX recessed lighting suitable for Zone 2 & 22 hazardous areas, showcases an innovative modular design that emphasises lightweight construction and convenient access from both above and below the ceiling, simplifying installation and maintenance.
The SPZ-RCM312-EMX25 recess modular light fitting has a lumen output of 3700lm . Additionally, there is a standard version, the SPZ-RCM312, which delivers an impressive 3700lm lumens, ideal for environments requiring significantly brighter lighting.
The SPARTAN Recess SPZ-RCM312-EMX25 is a versatile lighting fixture weighing 7.8 kg. Its 300 x 1200 EMX Emergency variant is designed for multiple mounting options, allowing it to be installed on ceilings, floors, or walls.
This flexibility makes it suitable for various applications and environments, providing efficient illumination while complementing different interior designs. With its adaptable installation options, the SPZ-RCM312-EMX25 can enhance both functionality and aesthetics in a range of settings.
If you require an non emergency variant of the recessed lighting please quote SPZ-RCM312.
Each SPARTAN ATEX light is proudly designed and manufactured in the UK by Raytec, ensuring high-quality craftsmanship. Additionally, they come with an industry-leading 5-year warranty, providing peace of mind for users.
spartan recess spz-rcm312-EMX25
Hazardous Area Rating: Zone 2 & 22 – Gas & Dust
Hazardous Area Recessed Lighting | SPz-RCM312-EMX25 & SPz-RCM312-HO-EMX25
Technical Specification
Product dimensions can be modified to suit particular ceiling types or to assist in retrofitting existing installations – please contact our team for further information and assistance.
Lighting Designs for Hazardous Areas
Upgrading Plant Legacy Lighting to LED
Technical Specifications
| Category | ATEX Lighting (Zone 1 & Zone 2) |
|---|
| ATEX Rating | ATEX, UKEX & IEC Ex rated for Gas & Dust | |||||
| Hazardous Area Rating | Zone 2 (Gas), Zone 22 (Dust) | |||||
| Certificates | CML 23ATEX5450X CML 23UKEX5451X IECEx CML 23.0150X | |||||
| Gas | II 3 G D Ex ec mc IIC T4 Gc Ta = -40°C to +60°C (Ta = -40°C to +50°C ) when covered with insulation Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants | |||||
| Dust | Ex tc IIIC T95°C Dc Ta = -40°C to +60°C (Ta = -40°C to +50°C) when covered with insulation) Ta = -20°C to +50°C (Ta = -20°C to +40°C when covered with insulation) – emergency variants | |||||
| Input | 110-277VAC 50/60Hz |
| Power | 32W |
| High Output Power | N/A |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² (6mm² available – POA) |
| Power Factor | >0.95 |
| Cable Entries | 2xM20 cable entries, loop in/loop out as standard (other entries available upon request). (Dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug) |
| DALI | All non-emergency 110-277V variants are DALI 2.0 enabled as standard. Terminals provided for loop in/loop out 2 core control cable |
| Beam Pattern | 120° x 120° as standard More options available, see beam patterns below |
| Lumen Output on Mains | 3700lm |
| LED Type | Platinum Elite SMT LEDs |
| Number of LEDS | 160 |
| CRI | 80+ |
| Colour Temp | |
| Burning Position | Universal – Ceiling, wall or floor mount |
| IK Rating | IK10 |
| Weight | 7.8kg |
| Housing and Geartray | Epoxy Powder Coated Aluminium (Stainless steel options available – POA) |
| Unit Colour | Fine Texture White RAL 9016 (other colours available – POA) |
| Installation Instructions | See below |
| Mounting | Lay-in (T Ceiling) as standard Pull-up and Surface Mount Accessory Kits available |
| Temperature Range | -20° to +50°C (+40°C with insulation) -4°F to +122°F (+104°F with insulation) |
| Insulation – optional | Rockwool or equivalent – maximum thickness 100mm at a density of 110Kg/m3 See Temperature Range and Certification Section |
| IP Rating | IP65 |
| SPARTAN Zone 2/22 300 x 1200 Recess Modular | |
| SPZ-RCM312 | SPARTAN Zone 2 Recess Modular 300×1200 WL |
| SPZ-RCM312-EMX25 | SPARTAN Zone 2 Recess Modular Intelligent Emergency 25% 300×1200 WL |
| SPARTAN Zone 2/22 300 x 1200 Recess Modular High Output | |
| SPZ-RCM312-HO | SPARTAN Zone 2 High Output Recess Modular 300×1200 WL |
| SPZ-RCM312-EMX25-HO | SPARTAN Zone 2 High Output Recess Modular Intelligent Emergency 25% 300×1200 WL |
Request Information About This Product
Tell us your quantity and requirements — we reply within one business day.
Related Products
ATEX Recessed Lighting | Hazardous Area Recessed Lights Zone 2 & Zone 22
ATEX Recessed Lighting | Hazardous Area Recessed Lights Zone 2 & Zone 22ATEX Lighting (Zone 1 & Zone 2)

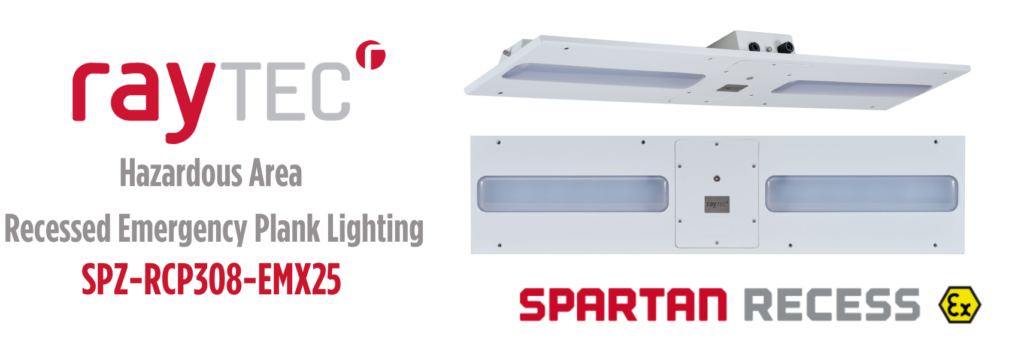

SPARTAN Recess Zone 2 Recessed Plank Emergency Hazardous Area Lights | SPZ-RCP308-EMX25
SPARTAN Recess SPZ-RCP308-EMX25
ATEX Lighting (Zone 1 & Zone 2)
ATEX Recessed Lighting | Hazardous Area Recessed Lights Zone 2 & Zone 22ATEX Lighting (Zone 1 & Zone 2)

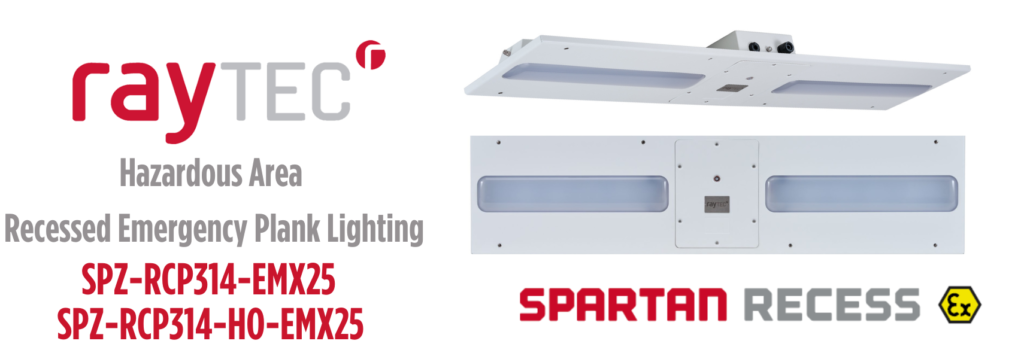

Hazardous Area Recessed Plank Emergency Lighting | SPARTAN Recess SPZ-RCP314-EMX25
