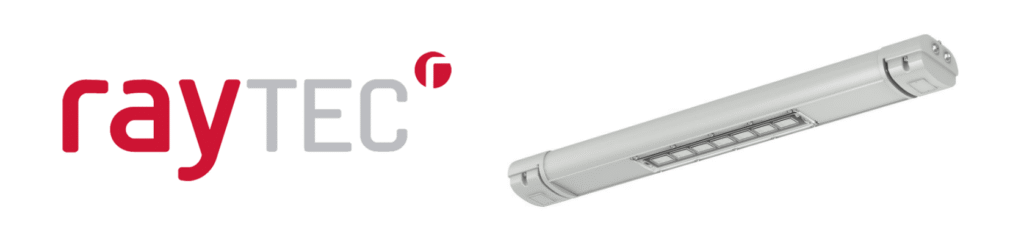

Raytec WL84-1200 | Linear Light Fitting Zone 1 & Zone 21 3,065 Lumens
Raytec WL84-1200 | Linear Light Fitting Zone 1 & Zone 21 3,065 Lumens
Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
Linear Generation II | UKCA Approved
SPARTAN Linear range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing 2 x 36W fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres – providing the output of a 2ft linear in a 4ft body.
The WL84-1200 light fittings are globally certified to Zone 1 offering long-life LED technology and offers a reduction in consumption from 78W (2x36W) to SPARTAN’s 34W – a saving of 56% per fitting.
Hazardous Area Rating: Zone 1 – Gas & Dust
Zone 1 Gas
Hazardous Area T Rating – T4 (T6 available on request)
Zone 21 Dust
The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x36W fluorescents, with lumen output and light distribution also offering a direct replacement.
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 2,500 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.
Light Fittings Dimensions
Standard
Metric – 1295 x 108 x 174mm
Imperial – 51 x 4.3 x 6.9”
| Category | ATEX Lighting (Zone 1 & Zone 2) |
|---|
| Certification: | ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust, and UL/CSA inc. C1D2 |
| Beam Angles: | 120°, Equivalent to 2 x 36W T8 Fluorescent |
| Input: | Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC |
| Consumption: | 34W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 84 |
| Power Output: | Up to 2,500lm |
| Wavelength: | White-Light (6,000K+) |
| IP Rating: | IP66 and IP67 |
| Temperature Range: | -40°C to +55°C |
| SPX-WL184-1200 | SPARTAN Linear 80 LED, Zone 1/21, White-Light (2x36W / 4ft retrofit) |
| SPX-WL184-1200-EMX25 | SPARTAN Linear 80 LED, Zone 1/21, White-Light – Intelligent Emergency variant (25% Output) (2x36W / 4ft retrofit) |
Tell us your quantity and requirements — we reply within one business day.
ATEX Light Fittings (Linear) | Zone 1 LED Hazardous Area LightingRaytec SPX-WL84-EMX25-SP | Linear Spigot Light Fitting Zone 1 & Zone 21 3,065 Lumens
ATEX Light Fittings (Linear) | Zone 1 LED Hazardous Area LightingRaytec SPX-WL84-SP | Linear Spigot Light Fitting Zone 1 & Zone 21 3,065 Lumens

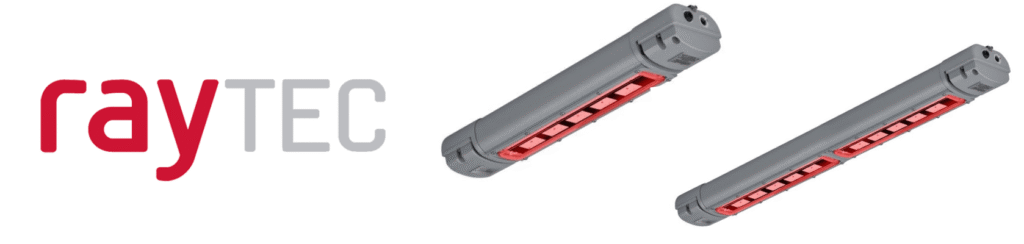

ATEX Light Fittings (Linear) | Zone 1 LED Hazardous Area LightingLow Wavelength Red Light | Linear Light Fitting Zone 1 & Zone 21
