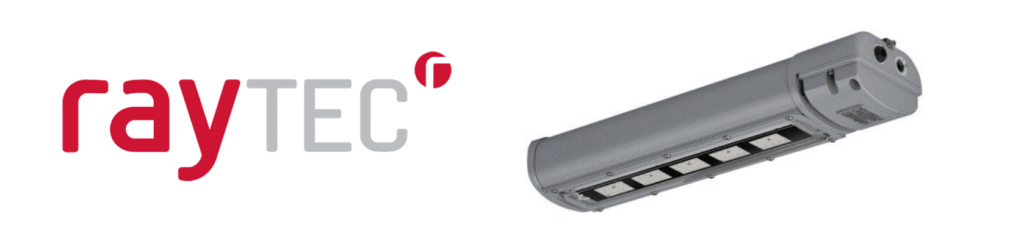

SPX-WL84-LL | Raytec SPARTAN Linear Loop In/Loop Out ATEX Lighting for Zone 1 & Zone 21

Product Overview

ATEX Light Fittings

Raytec WL84-LL | Linear Light Fitting Zone 1 & Zone 21 3,065 Lumens Loop In Loop Out

Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

Linear Generation II | UKCA Approved

SPARTAN Linear Generation II range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

The WL84-LL Linear Essential light fittings are globally certified to Zone 1 offering long-life LED technology.

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

• II 2 G D
• Ex eb mb IIC T4 Gb
• Ta= -40°C to+60°C

Hazardous Area T Rating – T4 (T6 available on request)

Zone 21 Dust

• Ex tb IIIC T80OC Db
• Ta= -40°C to+60°C

The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x18W fluorescents, with lumen output and light distribution also offering a direct replacement.

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 3,065 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

Features & Benefits

• Raytec Part Number – SPX-WL84-LL
• ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
• UKCA approved
• Ultra Long Life LED
• High Lumen Output LED
• Fully Retrofittable
• Easy Installation and Maintenance
• Wide Operating Temp -40° to +60°
• Zone 2 Variants available
• 5 Year Warranty
• UK Designed and Manufactured

Technical Specification

Lighting Fitting Dimensions

641 x 109 x 174mm (25.2 x 4.3 x 6.9″)
