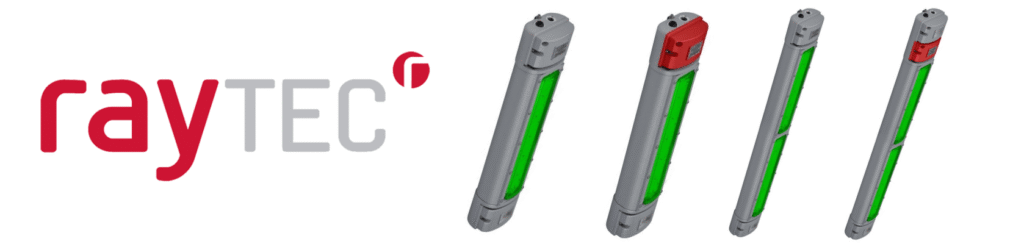

SPZ-WL168-G | Raytec SPARTAN Linear Green Safety Shower ATEX Lighting for Zone 2 & Zone 22

Product Overview

ATEX Light Fittings

Safety Shower Green Light| Linear Light Fitting Zone 2 & Zone 22

Zone 2 Light Fittings ATEX, IEC Ex & UKEX Rated for Gas & Dust Explosive Atmospheres

Linear Generation II | UKCA Approved

SPARTAN Linear Generation II range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations where a safety shower unit is located in potentially explosive atmospheres.

Using green, long-life LED technology, the WL84 & WL168 Standard & Emergency Linear is globally certified for all Zone 1 applications.

The ‘Intelligent Emergency’ variant also self-tests the emergency battery to proactively monitor and maintain the overall health of the luminaire and communicate via a tri- colour indicator.

Hazardous Area Rating: Zone 2 – Gas & Dust

Zone 2 Gas

• II 3 G D
• Ex nA mc op is IIC T4 Gc
• Ta= -40°C to +60°C (-20°C to +50 for emergency variants)

Hazardous Area T Rating – T4 (T6 available on request)

Zone 22 Dust

• Ex tc op is IIIC T80°C Dc
• Ta= -40°C to +60°C (-20°C to +50°C for emergency variants)

Features & Benefits

• Raytec Part Numbers – SPZ-WL84-G, SPZ-WL84-EMX25-G, SPZ-WL168-G & SPZ-WL168-EMX25-G,
• ATEX & IEC Ex approved – Zone 2 (Gas) & Zone 22 (Dust)
• UKCA approved
• Ultra Long Life Green LED
• High Lumen Output LED
• Fully Retrofittable
• Easy Installation and Maintenance
• Emergency Variants
• Wide Operating Temp -40° to +60° (-20° to +50° emergency variants)
• Zone 1 Variants available
• 5 Year Warranty
• UK Designed and Manufactured
