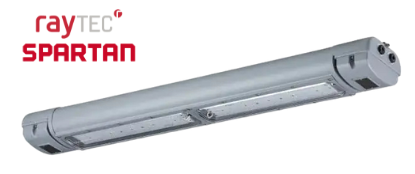

SPZ-WL168 | Raytec SPARTAN Linear ATEX Lighting for Zone 2 & Zone 22

Product Overview

The Raytec SPARTAN SPZ-WL168 is a premium ATEX and IECEx certified Zone 2 and Zone 22 Linear LED Light Fitting, designed for hazardous area lighting in industrial environments.

Read more…

Available in three high-performance ATEX lighting variants — SPZ-WL168, SPZ-WL168-EMX25 Emergency & SPZ-WL168-EMX25-EXIT — these Raytec SPARTAN linear light fittings combine robust design, long-life LEDs, and high lumen output (up to 7,152 lumens) to ensure optimal illumination for both new installations and retrofits of traditional 2×18W fluorescent systems. Each fitting features CoolXtrude™ thermal management technology, full retrofit compatibility, and emergency options where required, making them ideal for demanding industrial environments requiring compliant, high-efficiency hazardous area lighting.

Need technical guidance or a quotation?
Talk to one of our experts today — we’ll help you get it right the first time.

Raytec SPZ-WL168 | ATEX Linear Lighting Zone 2 & Zone 22

Features: ATEX, IECEx & UKEX certified, ultra long-life LED, retrofit-ready for 2×36W fluorescents, CoolXtrude™ thermal management, high lumen output, emergency variants available, 5-year warranty Standards: II 3 G D, Ex nA mc op is IIC T4 Gc, Ex tc op is IIIC T80°C Dc, UL/CSA inc. C1D2, UKCA Approved, Hazardous Area T Rating T4 (T6 on request) Performance: Up to 7,048 delivered lumens, wide operating temperature -40°C to +60°C (-20°C to +50°C for emergency variants) Applications: Zone 2 & Zone 22 hazardous area lighting, offshore platforms, refineries, chemical plants, retrofit or new installations Installation: Same footprint, fixing centres & gland entries as common 2×36W fluorescents; easy to install & maintain View Datasheet
Order This Product SPZ-WL168 Technical Specifications

Raytec SPZ-WL168-EMX25 | ATEX Emergency Linear Lighting Zone 2 & Zone 22

Features: ATEX, IECEx & UKEX certified, this advanced luminaire is designed for use in hazardous or industrial environments where reliability and safety are critical. Featuring ultra long-life, high-efficiency LED technology, it delivers exceptional performance while minimising maintenance requirements. Standards: II 3 G D, Ex nA mc op is IIC T4 Gc, Ex tc op is IIIC T80°C Dc, UL/CSA inc. C1D2, UKCA Approved, Hazardous Area T Rating T4 (T6 on request) Performance: Up to 7,048 delivered lumens, wide operating temperature -20°C to +50°C (-4°F to + 122°F) Applications: Zone 2 & Zone 22 hazardous area lighting, offshore platforms, refineries, chemical plants, retrofit or new installations requiring emergency backup Installation: Same footprint, fixing centres & gland entries as common 2×36W fluorescents; easy to install & maintain View Datasheet
Order This Product SPZ-WL168-EMX25 Technical Specifications

SPZ-WL168 Dimensions

Technical dimension drawings for the Raytec SPARTAN SPZ-WL168 Zone 2/22 Linear LED Light Fittings. These diagrams show standard, emergency, and retrofit options.

• Body: 1414 × 108 × 174 mm (55.7″ × 4.3″ × 6.9″)
• End: 174 x 188 mm (6.9″ x 4.6″)

Raytec WL168 Zone 2 & Zone 22 Product Codes

18–69V variants available – add -LV to the above codes

12V variants available – add -ELV to the above codes

Add -D to part code for diffused lens

We provide reliable delivery worldwide and offer tailored technical support, quotations, and product recommendations from our team of hazardous area lighting experts.

Request SPZ-WL168 Quote
Browse SPARTAN Lighting

The Raytec SPARTAN range of ATEX and IECEx approved luminaires is designed for Zone 2 and Zone 22 hazardous areas where safety and performance are essential. The range includes linear fixtures, floodlights, bulkhead lights, high bay fittings and crane lighting. Ex d Flameproof and Ex e Explosion Proof options available for demanding offshore and industrial applications.
