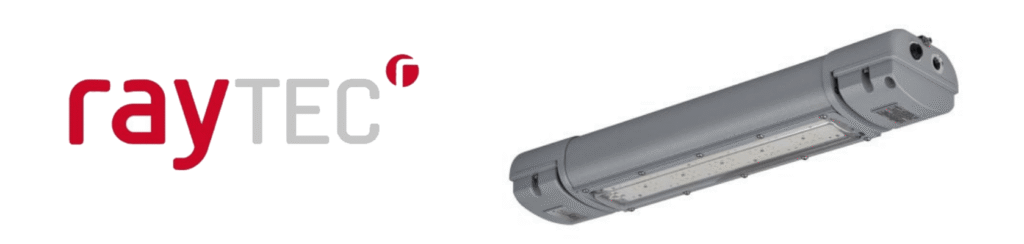

Raytec SPZ-WL84-HO | Linear Light Fitting Zone 2 & Zone 22 7,048 Lumens
Raytec SPZ-WL84-HO | Linear Light Fitting Zone 2 & Zone 22 7,048 Lumens
Zone 2 Light Fittings ATEX, IEC Ex & UKEX Rated for Gas & Dust Explosive Atmospheres
SPARTAN Linear High Output range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations offering twice the lumen output than the standard SPARTAN Linear whilst retaining the same lighting look and feel.
The increase in power means fewer luminaires are required across an installation when compared to traditional Linear fittings, while SPARTAN Linear High Output can also be utilised as a cost-effective alternative to low bay luminaires.
The SPZ-WL84-HO light fittings are globally certified to Zone 1 offering long-life LED technology.
Hazardous Area Rating: Zone 2 – Gas & Dust
Zone 2 Gas
Hazardous Area T Rating – T4 (T6 available on request)
Zone 22 Dust
SPARTAN Linear has been designed to provide extreme levels of durability and features a unique modular design which makes maintenance quick and easy.
All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.
Modular Design
Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.
Retrofittable
Linear High Output version has been designed with the same dimensions, fixing centres and cable entries as traditional fluorescent fittings making it a direct replacement.
Power & Performance
High lumen output up to 14 kilolumens and a range of beam patterns to effectively light up large open areas offering a better output than the standard linear version.
Bespoke LED
Raytec are specialists in LEDs and all their products are designed around LEDs with bespoke housing for optimum performance and reliability.
Robust and Durable
Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.
Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.
| Category | ATEX Lighting (Zone 1 & Zone 2) |
|---|
| WL84-HO | |
| ATEX Rating | ATEX UKEX and IEC Ex rated for Gas and Dust |
| Hazardous Area Rating | Zone 2 (Gas), Zone 22 (Dust) (Zone 21 version available: Zone 2 (Gas) Zone 21/22 (Dust)) |
| Certificates | ATEX: CML15ATEX4138 IECEx: IECExCML15.0068 UKEX: CML21UKEX4104 (Zone 21 version) ATEX: CML16ATEX1130 IECEx: IECExCML16.0052 UKEX: CML21UKEX1100 |
| Gas | II 3 G D Ex ec mc IIC T4 Gc Ta= -40°C to+60°C (-20°C to+50°C for emergency variants) |
| Dust | Ex tc IIIC T80°C Dc Ta= -40°C to+60°C (-20°C to+50°C for emergency variants) |
| Dust (Zone 21 version) | II 2 D Ex tb IIIC T80°C Db Ta= -40°C to+60°C (-20°C to+50°C for emergency variants) |
| ABS Certificate Number | # 20-1990083-PDA |
| Certification: | ATEX and IEC Ex rated for Zone 2/21/22 Gas and Dust, and UL/CSA inc. C1D2. UKCA approved. |
| Beam Angles: | 120°C, Equivalent to 2 x 18W T8 Fluorescent Symmetrical and Asymmetrical Optics |
| Input: | Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC |
| Consumption: | 48W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 80 |
| Power Output: | Up to 7,048 lumens |
| Wavelength: | White-Light (6,500K+) |
| IP Rating: | IP66 and IP67 |
| IK Rating: | IK10 |
| Temperature Range: | -40°C to +60°C |
| Weight: | 6kg (13.2lbs) |
| Cable Entries: | 2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs |
| Enclosure | Marine grade aluminium epoxy powder coated, UV stabilised polycarbonate, all external fasteners and brackets are marine grade stainless steel |
| Unit Colour: | Silver (RAL 9006) Emergency Cover – Red (RAL 3024) |
| SPZ-WL84-HO | SPARTAN High Output Linear 80 LED, Zone 2/22, White-Light |
| SPZ-WL84-EMX25-HO | SPARTAN High Output Linear 80 LED, Zone 2/22, White-Light – Intelligent Emergency variant (25% Output) |
