The Supergrip heavy duty belt fastener secures belting on bucket elevators. The two ends of the belt are gripped between extruded steel plates, clamped together by zinc plated high tensile bolts and…

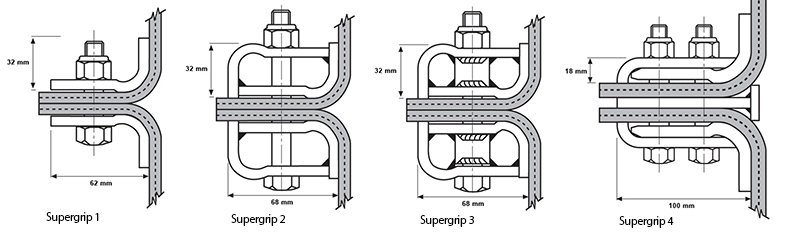

The Supergrip heavy duty belt fastener secures belting on bucket elevators. The two ends of the belt are gripped between extruded steel plates, clamped together by zinc plated high tensile bolts and self-locking nuts.
| Brand | 4B |
|---|
| Supergrip | Type | Belt Strength | Weight | Bolts |
| (kN/m max.) | (kgs) | |||
| Supergrip No. 1 | 500 | 0.5 | M14 | |
| Supergrip No. 2 | 630 | 0.8 | M14 | |
| Supergrip No. 3 | 800 | 0.85 | M14 | |
| Supergrip No. 4 | 1000/1250 | 1.83 | M16 | |
