VEGA VEGASWING 51 Vibrating Level Switch

Product Overview

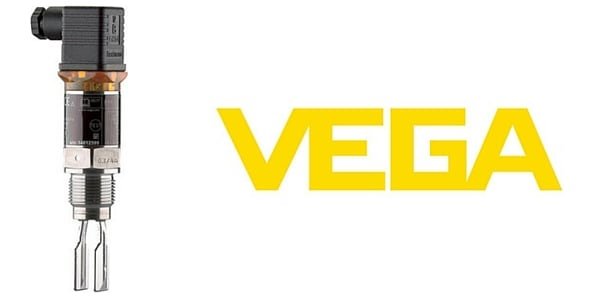

Level Switch VEGA VEGASWING 51

The VEGA VEGASWING 51 vibrating level switch is a universal level switch with small dimensions for liquid detection. The VEGASWING 51 is an economical solution with maximum reliability and safety, independent of the mounting position.

The VEGASWING 51 can be used as an empty or full detector and is approved for use as overfill protection, dry run protection and pump protection in vessels and pipelines.

VEGA LEVEL Switch – VEGASWING 51 FEATURES

FUNCTION

The heart of the sensor is the vibration drive by which the tuning fork is energized to vibrate at its resonance frequency. When covered with
medium, the frequency of the fork decreases.

This frequency change is processed by the integrated electronics and converted into a switching command.

With the tuning fork with only 38 mm length, the VEGASWING work reliably independent of the installation position in any liquid.

Pressure, temperature, foam, viscosity and the composition of the liquid do not influence the switching accuracy.

MATERIALS

Wetted Parts: Stainless steel 316L

Seal Material: Klingersil C-4400

HOUSING VERSIONS

316L and plastic PEI, IP67.

APPROVALS

1. Ship
2. Overfill protection
