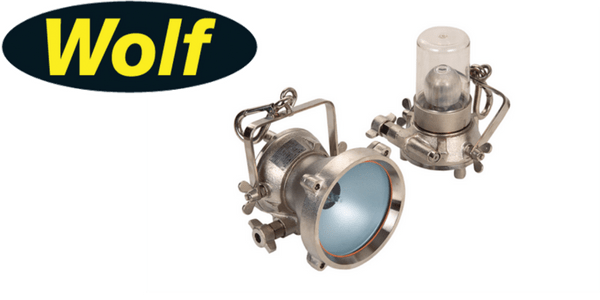

Wolf Airlamp Turbolite – Zone 1 & Zone 2 Hazardous Area

Product Overview

Hazardous Area Airlamps

Wolf A-TL44 | Wolf A-TL45

Airlamps for Zone 1, Zone 2 Hazardous Area Lighting

Wolf Turbolite airlamps are able to offe suitable lighting alternative solution to low voltage lighting in wet conditions. In particular for applications in the oil and petrochemical industries such as tank cleaning and pipeline inspections where flammable gases and vapours can accumulate in confined spaces.

The Turbolite airlamps all have bay light fitting comprising a ball glass and protective polycarbonate dome to provide all-round general purpose illumination. Hooks are also present so the airlamps can be suspended in the work area or attached to a folding tripod. They must all use an anti-static hose to prevent the generation of unsafe levels of static electricity.

Airlamps For Hazardous Areas

Wolf Turbolite airlamp provides reliable and versatile hazardous area lighting – the airlamps utilise tungsten halogen technology as a light source and are used for safe lighting in hazardous area Zones 1 and Zones 2 (potentially explosive gas atmospheres) (IIA, IIB & IIC Groups) with T4 temperature classification.

An overview of the Wolf Turbolite airlamps range to provide portable lighting in explosive atmospheres:

• Wolf A-TL44 Turbolite Airlamp Zone 1
• Wolf A-TL45 Turbolite Airlamp Zone 1
• Certification: Ex s II T4
• Hazardous Area Zone 1 & 2 Gas Groups IIA, IIB & IIC
• Temperature Classification (Gas) T4 | See more information about T Class Ratings
• More Technical Information Hazardous Area Zones

Wolf Turbolite airlamp

• 250 Watt Halogen Ultimate Output
• Electronic Setting Device
• Generator Overspeed Protector
• Advanced Internal Topology Rotor Design
• Spark Free Brass Casings
• Full Accessory Range Available

Zones 1 & 2 Hazardous Areas

• Zone 1 & Zone 2 Gas
• See below table for Certification details including T-Rating, Gas Groups and Zone locations

The Wolf Turbolite range are airlamps manufactured by Wolf Safety Lamp to provide lighting in Zone 1 & Zone 2 hazardous areas – the tungsten halogen airlamps are for use in potentially explosive atmospheres.

Light Output & Product Dimensions

A-TL44 – Ball Glass
Peak luminous intensity at 2.5m 70lux

A-TL45 – Polished Reflector
Spot Beam (approx 10°)
Peak luminous intensity at 5m 2000lux

A-TL45 – Matt Reflector
Flood Beam (approx 25°)
Peak luminous intensity at 5m 950lux
