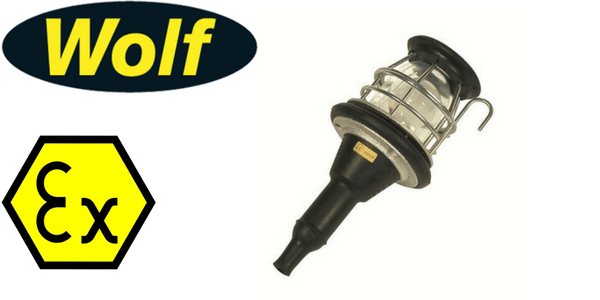

Wolf ATEX Ex GLS Leadlamp – Zone 1 & Zone 2 Hazardous Area

Product Overview

Hazardous Area Leadlamps

Wolf LL-01A10

Leadlamps for Zone 1, 2 Hazardous Area Lighting

Wolf ATEX Ex GLS leadlamps is encased by a glass dome offering extra protection against temperature changes and prevents the risk of failure from thermal shock. A steel cage guard with cast iron locking ring (both plated to stop corrosion) minimises the risk of direct impact damage, further protecting the glass.The rubber construction incorporates two rubber rings on both the top and the bottom of the steel guard.

The compact and lightweight design of the leadlamps is specifically made for handheld use boasting an “easy grip” feature for user comfort. A retractable hook incorporated in the steel guard allows the leadlamp to be hung with the unit weighing just over 2kg.

ATEX Leadlamps For Hazardous Areas

Wolf ATEX Ex GLS leadlamps provides reliable and versatile hazardous area lighting according to both ATEX Directive – the leadlamps utilise GLS technology as a light source and are used for safe lighting in hazardous area Zones 1 and Zones 2 (potentially explosive gas) with T3 temperature classification.

ATEX Certified For Explosive Atmospheres

An overview of the Wolf ATEX Ex GLS leadlamp range to provide temporary lighting in explosive atmospheres::

• Wolf LL-01A10 Leadlamp Zone 1
• ATEX Certification: II 2 G EEx d e llA T3
• Hazardous Area Zone 1 & 2 Gas Groups IIA
• Temperature Classification (Gas) T3 | See more information about T Class Ratings
• More Technical Information Hazardous Area Zones

Wolf ATEX Ex GLS Leadlamp

• ATEX certified leadlamp for zone 1 and 2 explosive atmospheres
• Uses standard 60 watt GLS rough service ES lamps
• Robust construction with rubber handle and impact ring
• Toughened glass cover with steel cage
• Cast iron locking ring
• Convenient integral hanging hook
• Ingress protection to IP54 rated leadlamp
• Supplied, fitted with cable

Zones 1 & 2 Hazardous Areas

• Zone 1 & Zone 2 Gas
• See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations

The Wolf ATEX Ex GLS range are leadlamps manufactured by Wolf Safety Lamp to provide lighting in Zone 1 and Zone 2 hazardous areas – the GLS leadlamps are for use in potentially explosive atmospheres according to the ATEX Directive.

Product Dimensions

Width: 330mm
Depth: 145mm
