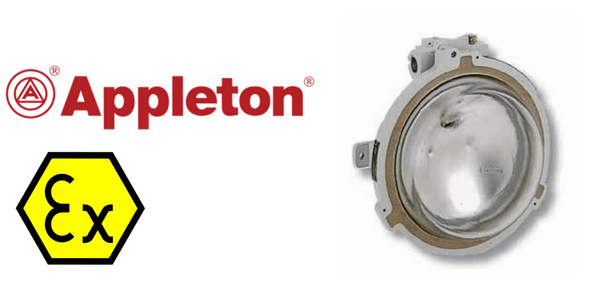

Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Flameproof – Appleton HBD

Product Overview

Appleton HBD is part of the Zone 1 and Zone 2 (21/22) hazardous area bullkhead ATEX lighting range are available in a round or oval design and have a flameproof rating.

The ATEX certified bulkhead luminaires are ideal for the illumination of stairways, small areas and emergency exits.

Features & Benefits

• HBDR
  — Lamps (not supplied)
  — Incandescent 200 W maximum
  — Compact Fluorescent 23 W maximum
  — Mixed 160 W maximum
  — Threaded flameproof joint.
  — Operates on ceiling and wall.
• HBRO
  — Incandescent 60 W to 100 W maximum
  — Compact fluorescent 15 W maximum
  — Operates in any position.
  — For incandescent 60 W and 100 W a high temperature cable 106 °C (223 °F) is required.
• Lamps are not supplied.
• E27 lampholder.
• Fixing by two integrated brackets.
• Connection to lampholder via two terminals 2.5 mm² (0.004 in²).
• Internal earth two terminals 2.5 mm² (0.004 in²).
• External earth one 4 mm² (0.006 in²).
• 3 x M20 threaded entries in “T” formation.
• Luminaire supplied with two blanking plugs M20.

ATEX/IECEx Certifications for hazardous areas

• ATEX / IECEx:
  – Zone 1 & 2 – 21 & 22
  – II 2 GD
  – IP66 – IK08

GOST also available.
