Bucket Elevator Components

Chain Shackles

BDS Bucket Attachment

Plain Segmented Chain Wheels

Replaceable segments made of high wear resistant chilled cast iron (400-450 HB 30)

Chain Connecting Links

A large range of chain sizes available on request.

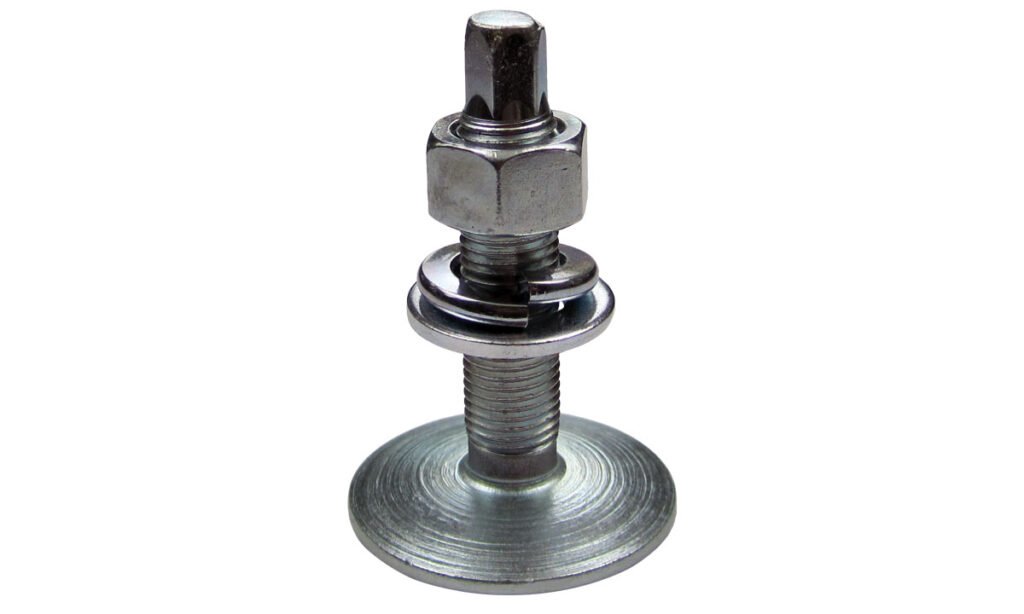

Easifit Elevator Bolts

4B Easifit elevator bolts are unique in that they employ a hexagon tip. Special installation tools lock onto the tip, keeping the bolt from spinning as the lock nut is tightened. Fanged…

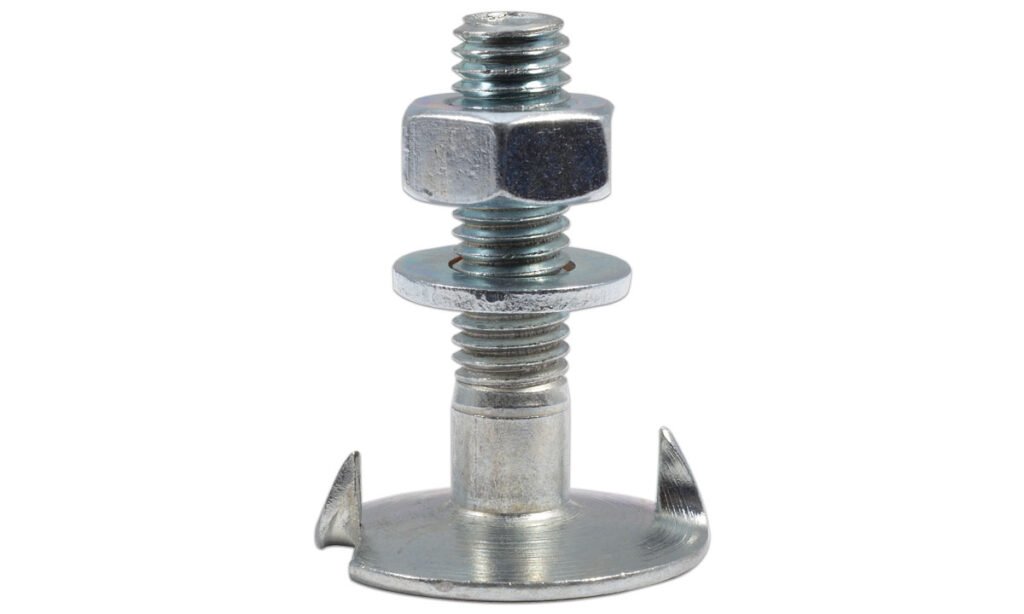

Fang Bolts

The fanged elevator bolt is characterized by two sharp teeth that are intended to penetrate the carcass of the elevator belt. Once the teeth penetrate the belt, they help keep the bolt…

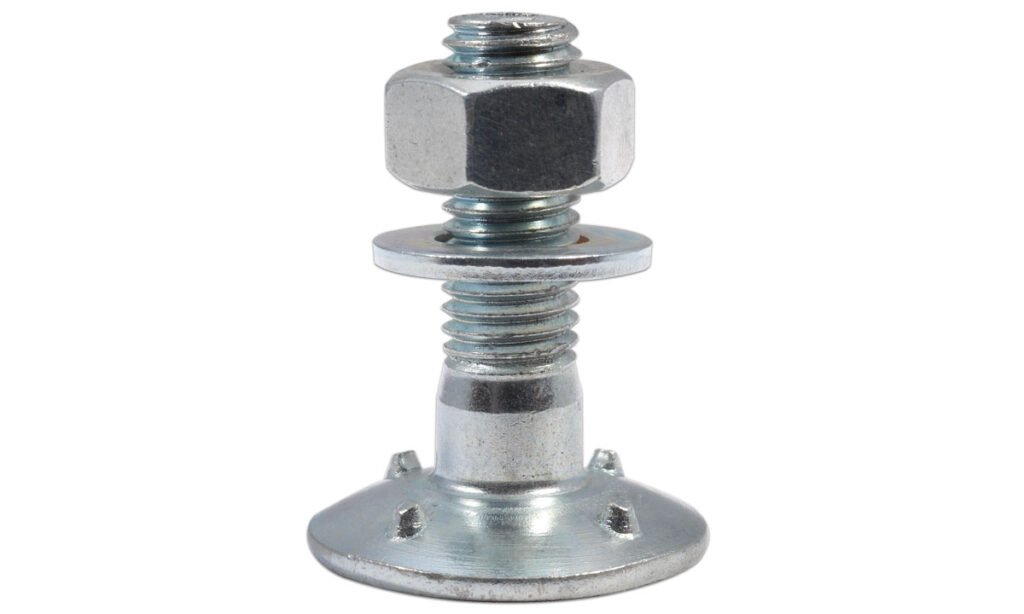

Reference 70™ Bolts

Reference 70™ (REF 70™) are ISO grade 5.8 elevator bolts with a concave head and four lugs on the underside to help prevent rotation when tightening. The REF 70™ bolt, when coupled…

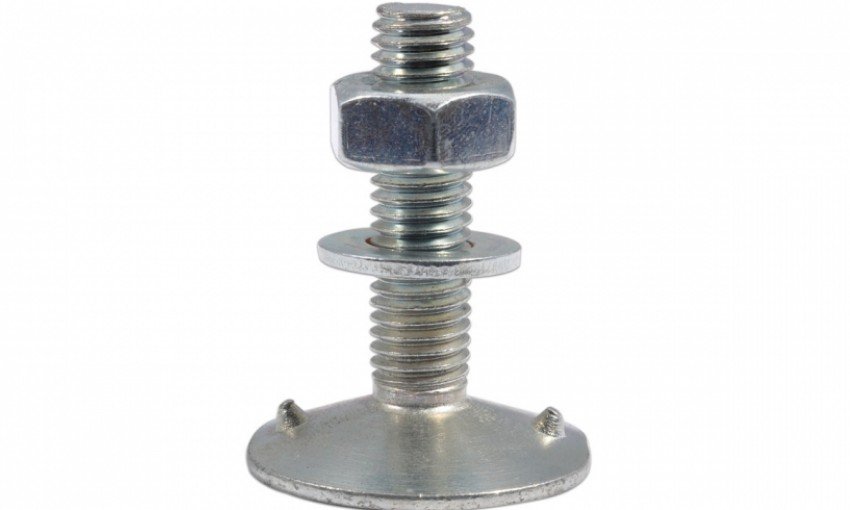

Euro Bolts

EURO bolts have a concave head and two lugs on the underside to help prevent rotation when tightening. The Euro elevator bolts are intended for the attachment of pressed steel elevator buckets…

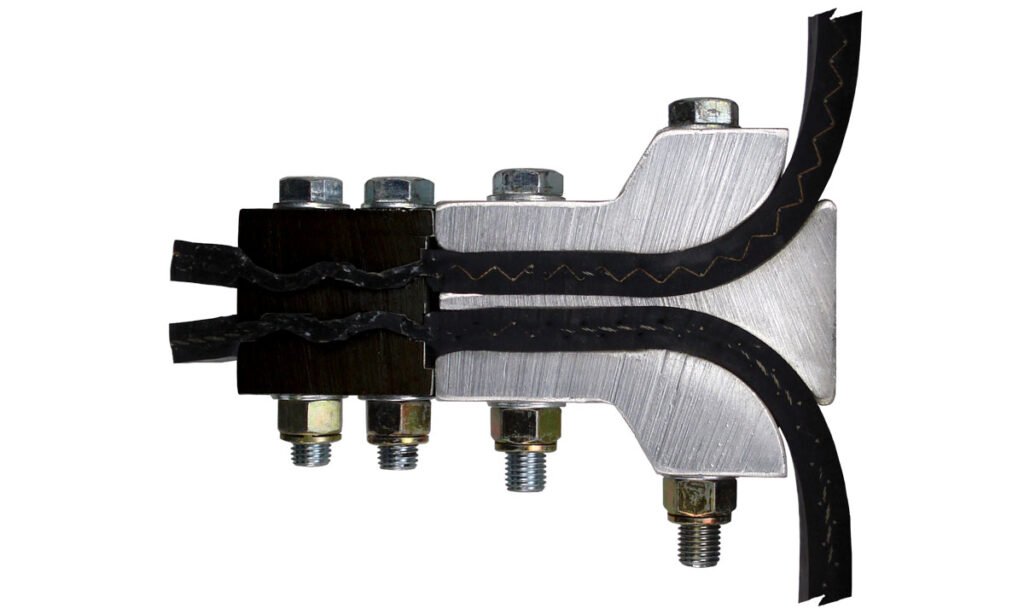

4B Braime Belt Clamp

The Braime Clamp (BC) series of heavy duty belt splices securely fastens belting on larger bucket elevators. Designed from three pieces of extruded aluminium including a centre wedge section to minimize belt…

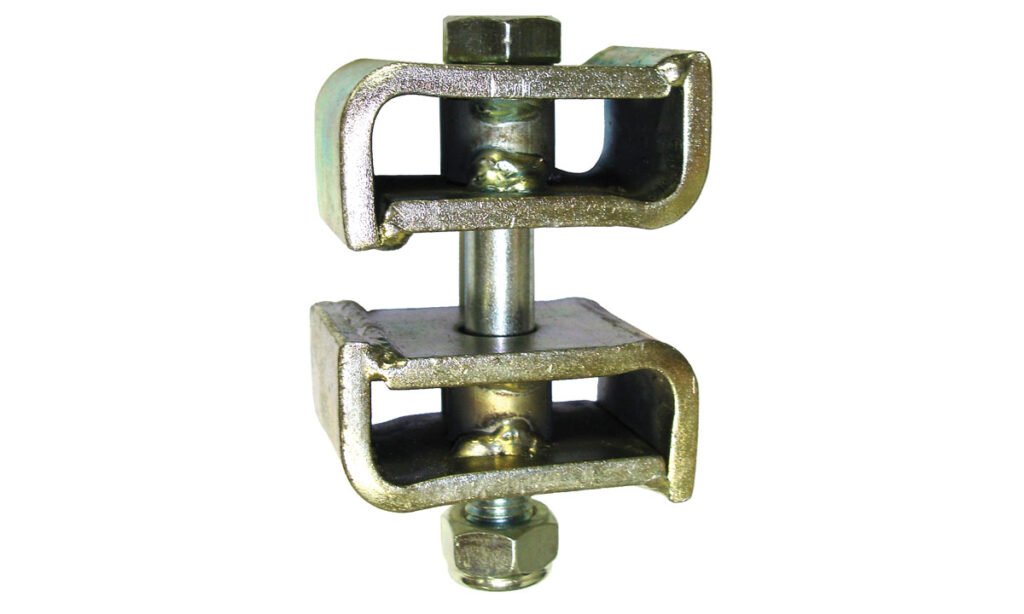

Supergrip Elevator Belt Splices

The Supergrip heavy duty belt fastener secures belting on bucket elevators. The two ends of the belt are gripped between extruded steel plates, clamped together by zinc plated high tensile bolts and…
