Product Overview

ATEX Light Fittings

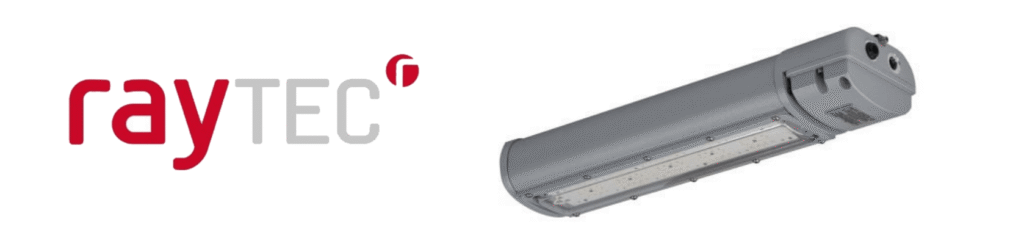

Raytec WL84-LL | Linear Light Fitting Zone 2 & Zone 22 3,524 Lumens

Zone 2 Light Fittings ATEX, IEC Ex & UKEX Rated for Gas & Dust Explosive Atmospheres

Linear Generation II | UKCA Approved

SPARTAN Linear Generation II range of Zone 2 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

The WL84-LL Essential light fittings are globally certified to Zone 2 offering long-life LED technology.

Hazardous Area Rating: Zone 2 – Gas & Dust

Zone 2 Gas

• II 3 G D
• Ex nA mc op is IIC T4 Gc
• Ta= -40°C to +60°C (-20°C to +50 for emergency variants)

Hazardous Area T Rating – T4 (T6 available on request)

Zone 22 Dust

• Ex tc op is IIIC T80°C Dc
• Ta= -40°C to +60°C (-20°C to +50°C for emergency variants)

The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x18W fluorescents, with lumen output and light distribution also offering a direct replacement.

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 3,524 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

Features & Benefits

• Raytec Part Number – SPZ-WL84-LL
• ATEX & IEC Ex approved – Zone 2 (Gas) & Zone 21 (Dust)
• UL/CSA approved including C1D2 and ABS
• UKCA approved
• Ultra Long Life LED
• High Lumen Output LED
• Fully Retrofittable
• Easy Installation and Maintenance
• Wide Operating Temp -40° to +60°
• Zone 1 Variants available
• 5 Year Warranty
• UK Designed and Manufactured

Technical Specification

Light Fittings Dimensions

Metric – 641 x 109 x 174mm
Imperial – 25.2 x 4.3 x 6.9”
