B-Type Elevator Buckets

Type B elevator buckets are generally used for sticky materials at slow speeds and for free-flowing materials at higher speeds and closer spacing.

Brand4B

MaterialHDP, Stainless Steel, Steel

Use by IndustryAgricultural, Industrial

Download Datasheet

Quoted to your quantity
Documentation on request
International delivery

Product Overview

Type B elevator buckets are generally used for sticky materials at slow speeds and for free-flowing materials at higher speeds and closer spacing.

Technical Specifications

Brand	4B
Material	HDP, Stainless Steel, Steel
Use by Industry	Agricultural, Industrial

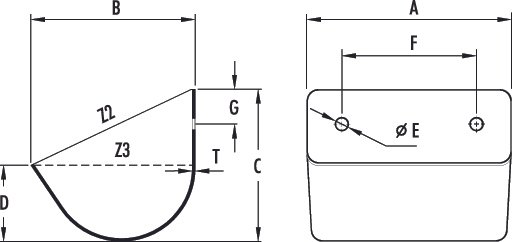

	A	B	C	D	T	Weight	Capacity (L)	Capacity (L)	Holes	E	F	G
B-Type Bucket	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	Z2 (Gross)	Z3 (Water)	No.	(dia mm)	(mm)	(mm)
B10	64	51	57	32	1.2	0.08	0.1	0.06	to customer spec
B17	76	70	67	35	0.9	0.1	0.18	0.1	to customer spec
B21	95	70	67	35	1.2	0.14	0.22	0.13	to customer spec
B38	102	86	83	35	1.2	0.18	0.38	0.2	to customer spec
B44	127	86	83	35	1.2	0.23	0.46	0.23	to customer spec
B63	127	89	89	38	1.2	0.27	0.55	0.3	to customer spec
B66	140	89	89	38	1.2	0.29	0.62	0.32	to customer spec
B70	152	89	89	38	1.2	0.32	0.64	0.34	to customer spec
B114 P+R	152	95	98	38	1.5	0.41	0.75	0.42	2	8.7	83	25
B114	152	95	98	38	1.5	0.41	0.75	0.42	to customer spec
B117	152	95	98	38	3	0.79	0.75	0.42	to customer spec
B134 HDP	220	106	104	50	4	0.18	1.15	0.62	2	8.7	127	36
B134 P+R	220	95	98	38	1.5	0.57	1.15	0.57	2	8.7	127	25
B135	229	95	98	38	1.5	0.59	1.25	0.6	to customer spec
B135 P+R	229	95	98	38	1.5	0.59	1.25	0.6	2	8.7	127	25
B147	152	117	108	54	1.5	0.52	1.1	0.59	to customer spec
B149	152	117	108	54	3	0.98	1.1	0.59	to customer spec
B151	178	117	108	54	1.5	0.54	1.15	0.65	to customer spec
B153	178	117	108	54	3	1.02	1.15	0.65	to customer spec
B155	203	117	108	54	1.5	0.64	1.4	0.83	to customer spec
B157	203	117	108	54	3	1.2	1.4	0.83	to customer spec
B167	127	121	114	54	1.5	0.43	0.95	0.5	to customer spec
B167 P+R	127	121	114	54	1.5	0.43	0.95	0.5	2	8.7	70	32
B175	152	121	114	54	1.5	0.54	1.1	0.64	to customer spec
B188	191	121	114	54	2	0.77	1.4	0.83	to customer spec
B198	229	121	114	54	1.2	0.57	1.75	1	to customer spec
B200	229	121	114	54	2	0.88	1.75	1	to customer spec
B201	229	121	114	54	3	1.29	1.75	1	to customer spec
B205	254	120	114	55	1.5	0.82	1.9	1.1	to customer spec
B211	178	130	114	54	1.5	0.59	1.45	0.8	to customer spec
B219	203	130	114	54	1.5	0.64	1.65	0.92	to customer spec
B221	203	130	114	54	3	1.29	1.65	0.92	to customer spec
B234	241	130	114	54	3	1.56	2	1.15	to customer spec
B237	254	130	114	54	2	1.09	2.1	1.25	to customer spec
B238	254	130	114	54	3	1.54	2.1	1.25	to customer spec
B242	279	130	114	54	3	1.72	2.35	1.35	to customer spec
B258	203	133	127	54	1.5	0.79	1.85	0.9	to customer spec
B263	229	133	127	54	1.5	0.86	2	1	to customer spec
B266	229	133	127	54	3	1.56	2	1	to customer spec
B269	254	133	127	54	2	1.13	2.25	1.15	to customer spec
B278	305	133	127	54	1.5	1	2.8	1.35	to customer spec
B281	305	133	127	54	3	2	2.8	1.35	to customer spec
B283*	333	140	140	60	1.5	1.18	3.75	2	to customer spec
B297	203	152	149	57	3	1.63	2.25	1	to customer spec
B301	254	152	149	57	3	2	2.75	1.4	to customer spec
B303	305	152	149	57	1.5	1.18	3.5	1.75	to customer spec
B304 HDP	298	145	149	48	6.5	0.47	3	1.18	to customer spec
B304 P+R	305	152	149	57	2	1.56	3.5	1.75	4	8.7	51-102-51	44
B305	305	152	149	57	3	2.31	3.5	1.75	to customer spec
B307	381	152	152	67	2	1.93	4.85	2.5	to customer spec
B307 P+R	381	152	152	67	2	1.93	4.85	2.5	4	8.7	76-127-76
B364	254	152	178	83	2	1.54	3.6	2	to customer spec
B365	254	152	178	83	3	2.27	3.6	2	to customer spec
B323	305	178	181	79	3	2.83	5.5	2.75	to customer spec
B328	356	178	181	79	3	3.52	6.52	3.25	to customer spec
B335	305	178	206	79	3	3.02	5.75	2.5	to customer spec
B339	381	210	184	86	3	4.08	8	4.25	to customer spec
B340	457	235	210	102	3	5.08	13	7	to customer spec
B341	457	235	210	102	4.7	6.26	13	7	to customer spec

* Non stock item - Only made to order.
HDP - High density polyethylene with standard recessed holes.
P + R - With standard recessed holes.

Applications

Cereals
Pellets & Light Agricultural
Sticky Materials
Light Industrial
Heavy Industrial

Features

Pressed seamless steel, no welds or joints
Elevator bucket for sticky materials at slow speeds
For free flowing materials at higher speed and closer spacing
Good, versatile, medium capacity elevator bucket
