Type C elevator buckets are suitable for free-flowing materials, or for materials elevated at slower speeds.
Type C elevator buckets are suitable for free-flowing materials, or for materials elevated at slower speeds.
| Brand | 4B |
|---|---|
| Material | Steel |
| Use by Industry | Agricultural, Industrial |

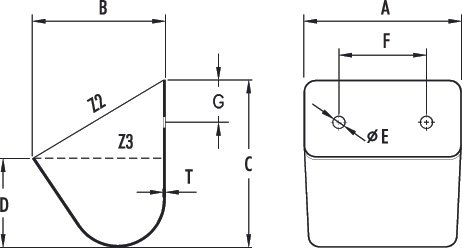

| A | B | C | D | T | Weight | Capacity (L) | Capacity (L) | ||
| C-Type Bucket | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | Z2 (total) | Z3 (water) | |
| C240 | 89 | 79 | 92 | 51 | 1.2 | 0.18 | 0.35 | 0.21 | |
| C14 | 102 | 79 | 92 | 51 | 2 | 0.36 | 0.4 | 0.24 | |
| C16 | 127 | 79 | 92 | 51 | 1.2 | 0.25 | 0.49 | 0.3 | |
| C19 | 127 | 79 | 92 | 51 | 3 | 0.5 | 0.49 | 0.3 | |
| C22 | 152 | 79 | 92 | 51 | 1.5 | 0.36 | 0.59 | 0.36 | |
| C27 | 102 | 89 | 108 | 57 | 2 | 0.39 | 0.52 | 0.32 | |
| C30 | 127 | 89 | 108 | 57 | 1.2 | 0.29 | 0.66 | 0.4 | |
| C33 | 127 | 89 | 108 | 57 | 3 | 0.68 | 0.66 | 0.4 | |
| C37 | 152 | 89 | 108 | 57 | 2 | 0.53 | 0.78 | 0.5 | |
| C38 | 152 | 89 | 108 | 57 | 3 | 0.79 | 0.78 | 0.5 | |
| C42 | 178 | 89 | 108 | 57 | 2 | 0.68 | 0.96 | 0.6 | |
| C193 | 140 | 95 | 111 | 57 | 1.2 | 0.32 | 0.79 | 0.46 | |
| C98 | 127 | 102 | 127 | 67 | 1.2 | 0.34 | 0.89 | 0.55 | |
| C104 | 152 | 102 | 127 | 67 | 1.5 | 1.02 | 1.1 | 0.66 | |
| C116 | 203 | 102 | 127 | 67 | 3 | 1.25 | 1.5 | 0.92 | |
| C119 | 229 | 102 | 127 | 67 | 1.5 | 0.79 | 1.8 | 1.1 | |
| C123 | 127 | 114 | 143 | 76 | 1.2 | 0.43 | 1.15 | 0.7 | |
| C129 | 152 | 114 | 143 | 76 | 1.5 | 0.61 | 1.35 | 0.85 | |
| C131 | 152 | 114 | 143 | 76 | 3 | 1.16 | 1.35 | 0.85 | |
| C135 | 178 | 114 | 143 | 76 | 1.5 | 0.68 | 1.6 | 1 | |
| C138 | 178 | 114 | 143 | 76 | 3 | 1.34 | 1.6 | 1 | |
| C141 | 203 | 114 | 143 | 76 | 1.5 | 0.73 | 1.81 | 1.06 | |
| C144 | 203 | 114 | 143 | 76 | 3 | 1.45 | 1.81 | 1.06 | |
| C154 | 254 | 114 | 143 | 76 | 1.5 | 0.93 | 2.3 | 1.4 | |
| C156 | 254 | 114 | 143 | 76 | 3 | 1.81 | 2.3 | 1.4 | |
| C159 | 152 | 140 | 159 | 95 | 2 | 1.07 | 1.8 | 1.2 | |
| C162 | 178 | 140 | 159 | 95 | 1.5 | 0.84 | 2.15 | 1.4 | |
| C166 | 203 | 140 | 159 | 95 | 1.5 | 0.95 | 2.45 | 1.65 | |
| C168 | 203 | 140 | 159 | 95 | 3 | 1.72 | 2.45 | 1.65 | |
| C170 | 229 | 140 | 159 | 95 | 1.5 | 1.07 | 2.85 | 1.85 | |
| C171 | 229 | 140 | 159 | 95 | 2 | 1.36 | 2.85 | 1.85 | |
| C172 | 229 | 140 | 159 | 95 | 3 | 1.97 | 2.85 | 1.85 | |
| C175 | 254 | 140 | 159 | 95 | 2 | 1.43 | 3.1 | 2 | |
| C176 | 254 | 140 | 159 | 95 | 3 | 2.04 | 3.1 | 2 | |
| C179 | 279 | 140 | 159 | 95 | 1.5 | 1.2 | 3.55 | 2.35 | |
| C181 | 279 | 140 | 159 | 95 | 3 | 1.86 | 3.55 | 2.35 | |
| C184 | 305 | 140 | 159 | 95 | 2 | 1.77 | 4.05 | 2.7 | |
| C185 | 305 | 140 | 159 | 95 | 3 | 2.54 | 4.05 | 2.7 | |
| C231 | 356 | 181 | 181 | 117 | 3 | 3.61 | 6.55 | 4.7 |
Bolt holes to customer specification.
