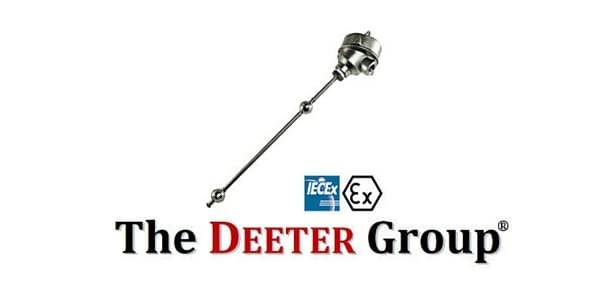

Deeter F/S-FP is an explosion & flameproof liquid level float switch suitable for use in potentially explosive atmospheres in zone 1 and zone 2 hazardous areas.
Deeter F/S-FP is an explosion & flameproof liquid level float switch suitable for use in potentially explosive atmospheres in zone 1 and zone 2 hazardous areas.
The Deeter F/S-FP is made from 316 stainless steel, available in standard or customised lengths of up to 4 metres and uses reed switch of Hall Effect sensing technology for control and indication of a liquid level.
The F/S-FP hazardous area liquid level sensor holds ATEX & IECEx Ex d certification for use in most regions worldwide.
See how Deeter Electronics Group manufacture liquid level sensors and control equipment for commercial, industrial and hazardous area sensing of liquids with ATEX, IECEx and CSA Certified sensors.
| Brand | Deeter |
|---|---|
| Category | Process Instrumentation |
| Hazardous Area Liquid Level Sensor Approval & Application Standards | ATEX & IECEx |
| Ex Coding | With Mounting Adaptor: Ex II 1/2G 2D Ex d IIC (*) Ga/Gb Ex t IIIC (*) Db IP68 -20°C≤Ta≤+85°CWithout Mounting Adaptor: Ex II 2 GD Ex d IIC (*) Gb Ex t IIIC (*) Db IP68 -20°C≤Ta≤+85°C* Temperature class options to suit environment and process temperatures T5 / T100oC for process temperatures ≤ 85°C T4 / T135oC for process temperatures ≤ 125°C T3 / T200oC for process temperatures ≤ 180°C |
| Deeter Liquid Level Sensor Technology | Magnetic float with reed switch or Hall Effect |
| IP rating with suitable cable gland | IP66/68 for indoor or outdoor |
| Approximate Weight | |
| ø12mm stem | 1kg +process connector + 0.5kg/Metre |
| ø8mm stem | 1kg +process connector + 0.3kg/Metre |
| Float Diameter: Specific gravity | |
| ø12mm stem | ø53mm : 0.65 |
| ø8mm stem | ø30mm : 0.75 |
| Maximum Liquid Temperature | |
| Reed switch | -20 to +85°C -20 to +125°C -20 to +190°C |
| Hall Effect | -10 to +45°C |
| Maximum Head Temperature | -20 to +80°C |
| Maximum Operating Pressure | 150PSI / 10Bar standard 450PSI / 31Bar optional |
| Thread connection-Sensor tube | ½”-14 NPT |
| Thread connection-Wiring port | ½”-14 NPT or M20X1.5 |
| Connection Head Height | 95mm |
| Switch Rating | |
| >4 Point Reed Switch | 0 to 50Vdc. 1Amp. 50Watts Max |
| ≤4 Point Reed Switch | 0 to 240vac. 1Amp. 50Watts max |
| Hall Effect | Open collector 28Vdc Max. 50mA Max |
| Altitude | 2000m Maximum |
| Pollution Degree (enclosure interior) | 2 |
| Installation Category | Cat II |
