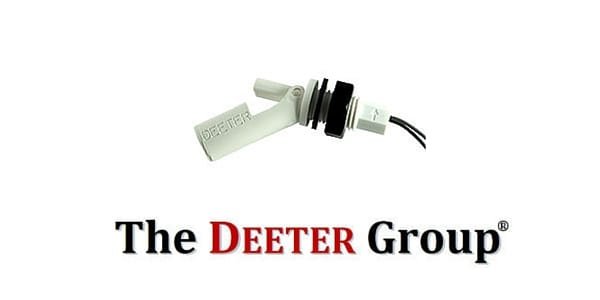

Horizontal Float Switch & Liquid Level Sensor – Deeter 40 Series

Product Overview

Deeter 40 Series is a cost-effective horizontally mounted liquid level sensor and float switch that can be internally or externally mounted.

The self cleaning hinge mechanism makes the Deeter 40 Series sensors ideal for demanding environments in industries such as Food, Automotive, Pharmaceutical, Petroleum and Chemical.

The float switch can be easily changed from Normally Open to Normally Closed operation to allow for sensing of high or low conditions by rotating the orientation of the body through 180º.

Technical Data

• Horizontally mounted miniature liquid level sensors designed for external or internal tank mounting
• Cost effective and reliable measuring solution for demanding environments
• Switch sensors in UL/WRC listed PVC,Polypropylene,PPS and Nylon materials to permit use in most chemical and temperature environments
• Change from N/O to N/C by inverting float
• By rotating the body through 180°it is possible to sense for high or low conditions

*Other lengths available to order

deeter 40 SERIES

40 Series Level Sensor & Float Switch PVC

• Deeter DE42-10C01- WHITE PVC FORM C 4W M16
• Deeter DE42-10C02 – WHITE PVC FORM C 4W M16
• Deeter DE42-10C03 – WHITE PVC FORM C 4W 3/8″
• Deeter DE42-10C04 – WHITE PVC FORM C 4W 1/2″ NPT
• Deeter DE42-50A01 – WHITE PVC FORM A 50W M16
• Deeter DE42-50A02 – WHITE PVC FORM A 50W M16
• Deeter DE42-50A03 – WHITE PVC FORM A 50W 3/8
• Deeter DE42-50A04 – WHITE PVC FORM A 50W 1/2″ NPT

40 Series Level Sensor & Float Switch Black Nylon

• Deeter DE43-10C01 – BLACK NYLON FORM C 4W M16
• Deeter DE43-10C02 – BLACK NYLON FORM C 4W M16
• Deeter DE43-10C03 – BLACK NYLON FORM C 4W 3/8
• Deeter DE43-10C04 – BLACK NYLON FORM C 4W 1/2″ NPT
• Deeter DE43-50A01 – BLACK NYLON FORM A 50W M16
• Deeter DE43-50A02 – BLACK NYLON FORM A 50W M16
• Deeter DE43-50A03 – BLACK NYLON FORM A 50W 3/8″ NPT
• Deeter DE43-50A04 – BLACK NYLON FORM A 50W 1/2″ NPT

40 Series Level Sensor & Float Switch Grey Polypropylene

• Deeter DE44-10C01 – GREY POLYPROPYLENE FORM C 4W M16
• Deeter DE44-10C02 – GREY POLYPROPYLENE FORM C 4W M16
• Deeter DE44-10C03 – GREY POLYPROPYLENE FORM C 4W 3/8
• Deeter DE44-10C04 – GREY POLYPROPYLENE FORM C 4W 1/2″ NPT
• Deeter DE44-50A01 – GREY POLYPROPYLENE FORM A 50W M16
• Deeter DE44-50A02 – GREY POLYPROPYLENE FORM A 50W M16
• Deeter DE44-50A03 – GREY POLYPROPYLENE FORM A 50W 3/8″ NPT
• Deeter DE44-50A04 – GREY POLYPROPYLENE FORM A 50W 1/2” NPTM12

40 Series Level Sensor & Float Switch Blue Polypropylene

• Deeter DE45-10C01 – BLUE POLYPHENYLENE SULFIDE FORM C 4W M16
• Deeter DE45-10C02 – BLUE POLYPHENYLENE SULFIDE FORM C 4W M16
• Deeter DE45-10C03 – BLUE POLYPHENYLENE SULFIDE FORM C 4W 3/8
• Deeter DE45-10C04 – BLUE POLYPHENYLENE SULFIDE FORM C 4W 1/2″ NPT
• Deeter DE45-50A01 – BLUE POLYPHENYLENE SULFIDE FORM A 50W M16
• Deeter DE45-50A02 – BLUE POLYPHENYLENE SULFIDE FORM A 50W M16
• Deeter DE45-50A03 – BLUE POLYPHENYLENE SULFIDE FORM A 50W 3/8
• Deeter DE45-50A04 – BLUE POLYPHENYLENE SULFIDE FORM A 50W 1/2″ NPT

Contact our team for hazardous area level sensors and float switches with ATEX Certification for Zone 1 & Zone 2.
