Deep drawn solid steel elevator bucket formed without any welds. Designed for stronger construction, longer life and cleaner discharge.
Deep drawn solid steel elevator bucket formed without any welds. Designed for stronger construction, longer life and cleaner discharge.
| Brand | 4B |
|---|---|
| Part numbers | J64, J75, J85, J95, J96, J106, J116, J126, J117, J127, J147, J167, J148, J168 |
| Material | Stainless Steel, Steel |
| Use by Industry | Agricultural |

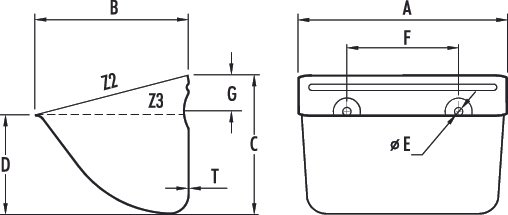

| J Bucket | A | B | C | D | T | weight | capacity | capacity | capacity | Max. | |
| (mm) | (mm) | (mm) | (mm) | (mm) | kg | Z2 (total) | Z3+10% | Z3 (water) | Pcs/Mtr | ||
| J64 | 161 | 110 | 100 | 71 | 1.2 | 0.45 | 1 | 0.85 | 0.77 | 8.75 | |
| J75 | 190 | 138 | 121 | 76 | 1.5 | 0.69 | 1.74 | 1.36 | 1.24 | 7.15 | |
| J85 | 213 | 141 | 121 | 83 | 1.5 | 0.82 | 2.1 | 1.78 | 1.62 | 7.15 | |
| J95 | 235 | 137 | 120 | 76 | 1.5 | 1.02 | 2.57 | 1.8 | 1.63 | 7.15 | |
| J96 | 235 | 160 | 150 | 92 | 2 | 1.46 | 3.26 | 2.48 | 2.25 | 6 | |
| J106 | 262 | 160 | 150 | 92 | 2 | 1.66 | 3.87 | 2.87 | 2.61 | 6 | |
| J116 | 287 | 163 | 154 | 95 | 2 | 1.85 | 4.08 | 3.24 | 2.95 | 6 | |
| J126 | 313 | 160 | 150 | 92 | 2 | 2.03 | 4.34 | 3.44 | 3.13 | 6 | |
| J117 | 290 | 191 | 171 | 107 | 2 | 2.1 | 5.74 | 4.4 | 4 | 5.25 | |
| J127 | 316 | 191 | 171 | 107 | 2 | 2.24 | 6.06 | 4.77 | 4.34 | 5.25 | |
| J147 | 367 | 191 | 171 | 107 | 2 | 2.49 | 7.34 | 5.46 | 4.96 | 5.25 | |
| J167 | 417 | 191 | 171 | 107 | 2 | 2.83 | 8.39 | 6.24 | 5.67 | 5.25 | |
| J148 | 362 | 210 | 203 | 121 | 2 | 2.89 | 9 | 7 | 6.36 | 4.6 | |
| J168 | 413 | 210 | 203 | 121 | 2 | 3.4 | 10.32 | 8 | 7.26 | 4.6 |
Bolt holes to customer specification.
