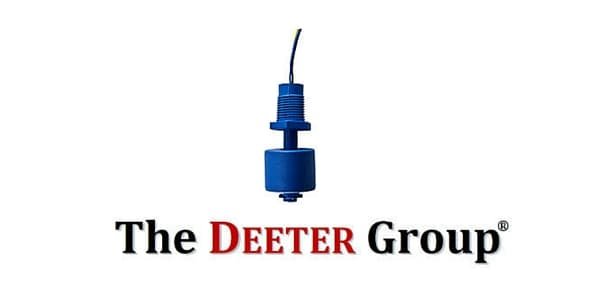

Vertical Float Switch & Liquid Level Sensor – Deeter 50 Series

Product Overview

Deeter 50 Series is a cost-effective and versatile liquid level sensor and float switch that can be internally mounted.

The design of the Deeter 50 Series is highly reliable making it ideal for most applications including food/beverage, automotive, chemical and scientific.

Technical Data

• Vertically mounted miniature liquid level sensors designed for internal tank mounting
• Cost effective and reliable measuring solution for demanding environments
• Switch sensors in UL/WRC listed PVC,Polypropylene,PPS and Nylon materials to permit use in most chemical and temperature environments

*Other lengths available to order

Deeter 50 Series

50 Series Level Sensor & Float Switch PVC

• Deeter DE52-10C01- WHITE PVC 10W FORM C M12
• Deeter DE52-10C03 – WHITE PVC 10W FORM C 3/8″ NPT
• Deeter DE52-10C04 – WHITE PVC 10W FORM C 1/2″ NPT
• Deeter DE52-50A01 – WHITE PVC 50W FORM A M12
• Deeter DE52-50A03 – WHITE PVC 50W FORM A 3/8″ NPT
• Deeter DE52-50A04 – WHITE PVC 50W FORM A 1/2″ NPT

50 Series Level Sensor & Float Switch Black Nylon

• Deeter DE53-10C01 – BLACK NYLON 10W FORM C M12
• Deeter DE53-10C03 – BLACK NYLON 10W FORM C 3/8″ NPT
• Deeter DE53-10C04 – BLACK NYLON 10W FORM C 1/2″ NPT
• Deeter DE53-50A01 – BLACK NYLON 50W FORM A M12
• Deeter DE53-50A03 – BLACK NYLON 50W FORM A 3/8″ NPT
• Deeter DE53-50A04 – BLACK NYLON 50W FORM A 1/2″ NPT

50 Series Level Sensor & Float Switch Grey Polypropylene

• Deeter DE54-10C01 – GREY POLYPROPYLENE 10W FORM C M12
• Deeter DE54-10C03 – GREY POLYPROPYLENE 10W FORM C 3/8″ NPT
• Deeter DE54-10C04 – GREY POLYPROPYLENE 10W FORM C 1/2″ NPT
• Deeter DE54-50A01 – GREY POLYPROPYLENE 50W FORM A M12
• Deeter DE54-50A03 – GREY POLYPROPYLENE 50W FORM A 3/8″ NPT
• Deeter DE54-50A04 – GREY POLYPROPYLENE 50W FORM A 1/2″ NPT

50 Series Level Sensor & Float Switch Blue Polypropylene

• Deeter DE55-10C01 – BLUE POLYPHENYLENE SULFIDE 10W FORM C M12
• Deeter DE55-10C03 – BLUE POLYPHENYLENE SULFIDE 10W FORM C 3/8″ NPT
• Deeter DE55-10C04 – BLUE POLYPHENYLENE SULFIDE 10W FORM C 1/2″ NPT
• Deeter DE55-50A01 – BLUE POLYPHENYLENE SULFIDE 50W FORM A M12
• Deeter DE55-50A03 – BLUE POLYPHENYLENE SULFIDE 50W FORM A 3/8″ NPT
• Deeter DE55-50A04 – BLUE POLYPHENYLENE SULFIDE 50W FORM A 1/2″

Contact our team for hazardous area level sensors and float switches with ATEX Certification for Zone 1 & Zone 2.
