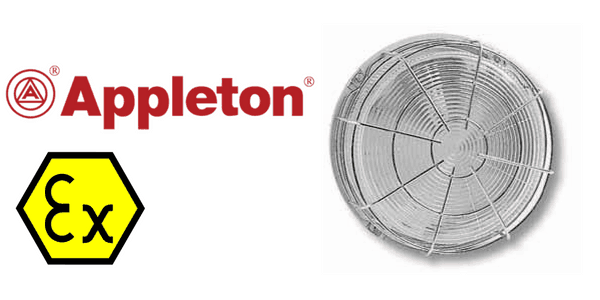

Zone 1 Zone 2 (21/22) ATEX Bulkhead Luminaires Increased Safety – Appleton HBE

Product Overview

Appleton HBE is part of the Zone 1 Zone 2 (21/22) ATEX bulkhead luminaries lighting range that are rated for Increased Safety specifically designed for use in in Zone 1, 2, 21 and 22 hazardous locations.

The Appleton HBE is compact in design making it ideal for lighting stairways, small areas and emergency exits. The ATEX certified bulkhead luminaire has a grey painted aluminum alloy body with glass diffuser, silicone sealing gasket, zinc plated steel guard and polyamide cable gland and blanking plug.

Features & Benefits

• For incandescent lamps 60 W to 150 W maximum, mixed lamp 100 W maximum. Lamps not supplied
• E27 lampholder for hazardous area lighting
• Screw locking mechanism
• Luminaire operates in all positions
• Connection to lampholder via two 2 x 2.5 mm2 (0.003 x 0.004 in²) terminals
• Internal earth two terminals 2 x 2.5 mm2 (0.003 x 0.004 in2)
• External earth 1 x 4 mm² (0.002 x 0.006 in²)
• Three M20 entries in “T” formation. Supplied with one M20 cable gland [6.5 to 14.5 mm (0.26 to 0.57 in) diameter] and two M20 blanking plugs

ATEX Certifications for hazardous areas

• ATEX / IEC:
  – Zone 1 and 2 – 21 and 22
  – II 2 GD
  – IP65

INMETRO

Certificate: BVC 11.0494-X

EURASEC

EURASEC N° TC RU C-FR.ГБ05.B.00912

ATEX

LCIE 02 ATEX 6228X
