BFW Swift Nx 5-axis machining centres: cradle rotary table, 12,000–15,000 rpm built-in spindle, linear scales and Siemens Sinumerik One. Request a quote.
The BFW Swift Nx is a simultaneous 5-axis machining centre for high-precision, complex parts. An FE-optimised gantry structure, a high-torque built-in spindle and an integrated cradle-type rotary table deliver precise indexing and a high surface finish on aerospace, medical and automotive components.
Linear scales on all linear axes and absolute encoders on the rotary axes are standard, and the tilting axis uses a tandem (gantry) drive. Together with an optional volumetric compensation system, this keeps 5-axis kinematics accurate across the whole working volume.
The Swift Nx5 has a Ø500 mm table, 700 / 795 / 600 mm travels and a 400 kg payload. The Swift Nx8 offers a Ø800 mm table, 1100 / 1100 / 600 mm travels and 1000 kg. Both tilt from −120° to +30° on A and rotate 360° on C, with a 12,000 rpm spindle (15,000 rpm option).
A 32-tool chain magazine is isolated from the cutting zone for clean, safe tool loading. Siemens Sinumerik One with Mdynamics and a 15-inch multi-touch screen gives smooth 5-axis toolpaths, and a dual chip conveyor with bed wash keeps chips moving.
Choose the Swift Nx for high-precision 5-axis machining of complex parts on a cradle table. For larger, heavier parts on a horizontal 5-axis platform, see the Orion Fx; for an affordable entry into 5-axis, compare the CL 500.
Swift Nx5 · Swift Nx8

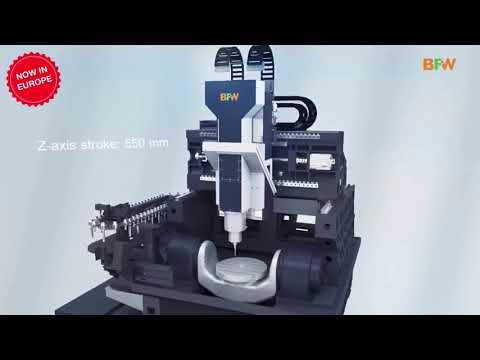

Watch the BFW Swift Nx in action (video)
All five axes move together during cutting, so the tool can follow complex 3D surfaces at the best angle. Parts with undercuts or free-form surfaces can be machined in one setup with a better finish.
Nx5 has a Ø500 mm table, 700 / 795 / 600 mm travels and 400 kg payload. Nx8 has a Ø800 mm table, 1100 / 1100 / 600 mm travels and 1000 kg payload.
Siemens Sinumerik One with Mdynamics and a 15-inch multi-touch display.
32 tools in a chain-type magazine isolated from the working zone.
Looking for a BFW Swift Nx? Send us the model, options and delivery address and we will reply with a price and lead time for your site in Europe. Request a quote.
| Machine type | Simultaneous 5-axis machining centre with cradle table |
|---|---|
| Models | Swift Nx5, Swift Nx8 |
| Spindle | 12,000 rpm (15,000 option), up to 40 kW |
| CNC | Siemens Sinumerik One |
| Brand | BFW (Bharat Fritz Werner) |
| Model | Swift Nx5 | Swift Nx8 |
|---|---|---|
| Pallet size (mm) | Ø500 | Ø800 |
| Axes X / Y / Z (mm) | 700 / 795 / 600 | 1100 / 1100 / 600 |
| Axis A | -120° / +30° | -120° / +30° |
| Axis C | 360° | 360° |
| Spindle speed (rpm) | 12,000 (15,000) | 12,000 (15,000) |
| Spindle power (kW) | 27 / 40 | 40 |
| Payload (kg) | 400 | 1000 |
| Tool magazine | 32 tools, chain type | 32 tools, chain type |
| CNC | Siemens Sinumerik One | Siemens Sinumerik One |
Figures in brackets are options. Specifications may change; the brochure and our quotation give the binding configuration.
