Grain, flour, sugar, starch, feed, wood dust and many chemicals form explosive clouds when finely divided in air. Bucket elevators are one of the places where these clouds are most likely to meet an ignition source: they combine a dust-laden enclosed casing with moving belts, rotating pulleys and bearings. Many of the serious dust explosions in agricultural and food plants have started in or spread through bucket elevators.
Most bucket elevator ignitions are caused by mechanical faults that generate heat or sparks:
Two EU directives set the rules:
Inside a bucket elevator casing, dust can be present frequently, and the zone classification of the inside and surroundings determines what equipment category is required for sensors and other devices installed there. Your explosion protection document should define this.
| Hazard | Sensor type | Examples |
|---|---|---|
| Belt slip / underspeed | Speed switch or shaft speed sensor on the boot pulley | Whirligig, M800 speed switch |
| Belt misalignment | Rub blocks or alignment sensors at head and boot | Touchswitch, B400 Elite beltswitch |
| Hot bearings | Bearing temperature sensors | ADB series bearing sensors |
| Plugging | Level or plug sensors in head and boot | Binswitch Elite capacitive sensor |

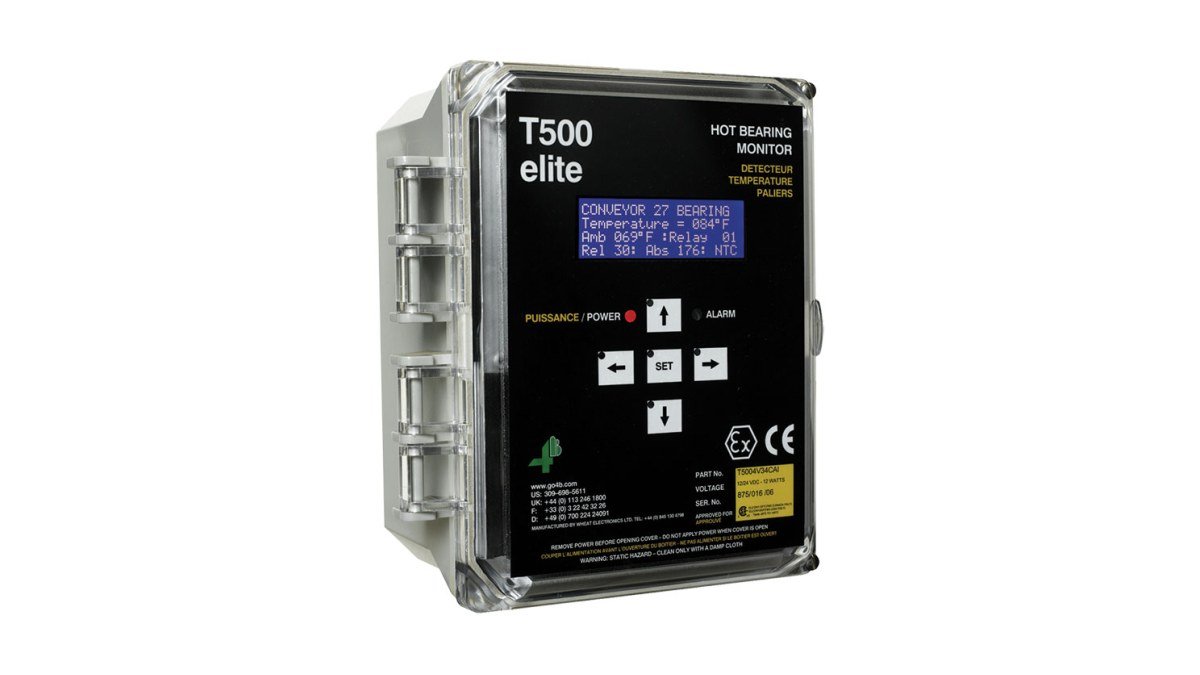

The sensors connect to a hazard monitoring unit — such as the Watchdog Super Elite or a networked system like the T500 Elite Hotbus — that raises alarms and stops the elevator and upstream feed before a fault turns into an ignition source.
Hazard monitoring prevents ignition sources. It works together with other measures: good housekeeping to limit dust deposits, fire-resistant and antistatic belts (see our belt selection guide), proper earthing, and explosion protection measures such as venting, suppression or isolation where the risk assessment requires them.
Many older elevators in Europe were installed without monitoring. Retrofitting sensors and a hazard monitor is relatively quick and is often requested by insurers after an audit. We can help you select a complete kit — sensors, mounting hardware, cables and control unit — for each elevator.
Browse our hazard monitors, speed switches, alignment sensors and bearing temperature sensors (4B products), or send us your elevator list with the ATEX zone classification.
EU law requires employers to assess explosion risks and take appropriate measures under the ATEX workplace directive. Hazard monitoring is a common and widely recommended measure, and insurers frequently require it for elevators handling combustible dust.
Typically belt speed and slip, belt alignment at head and boot, bearing temperatures and plug conditions. The monitor raises alarms and shuts down the elevator and feed when a fault occurs.
The required equipment category depends on the zone where each sensor is installed, as defined in the plant’s explosion protection document. Category 1D equipment suits zone 20, 2D zone 21 and 3D zone 22.
